Coffee Bean Packing Machine丨Horizontal Packaging Machinery 丨1kg 2kg 2.5kg Roasted coffee beans丨Aluminum Foil Coffee Beans
| Share | |
|---|---|
| Categories | Horizontal Linear Packing Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-MDPL |
| Machine name | Coffee Bean Packing Machine |
| Bag width | 80-300mm |
| Bag length | 100-450mm |
| Bag type | doypack bag, stand up zipper pouch, gusset bag |
| Voltage | 110/220/240/380/415 V |
| Pneumatic parts | Eurovac Vacuum Pump from Taiwan |
| Machine Material | SS#304 |
| Speed | 15-30bags/min |
| Function | Bag opening, filling, sealing, date coding |
| Brand | TOP Y MACHINERY |
| Warranty | 2years |
| FOB port | Shenzhen, Guangzhou, Shunde |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T, Paypal |
| Download |  |
Detail Information

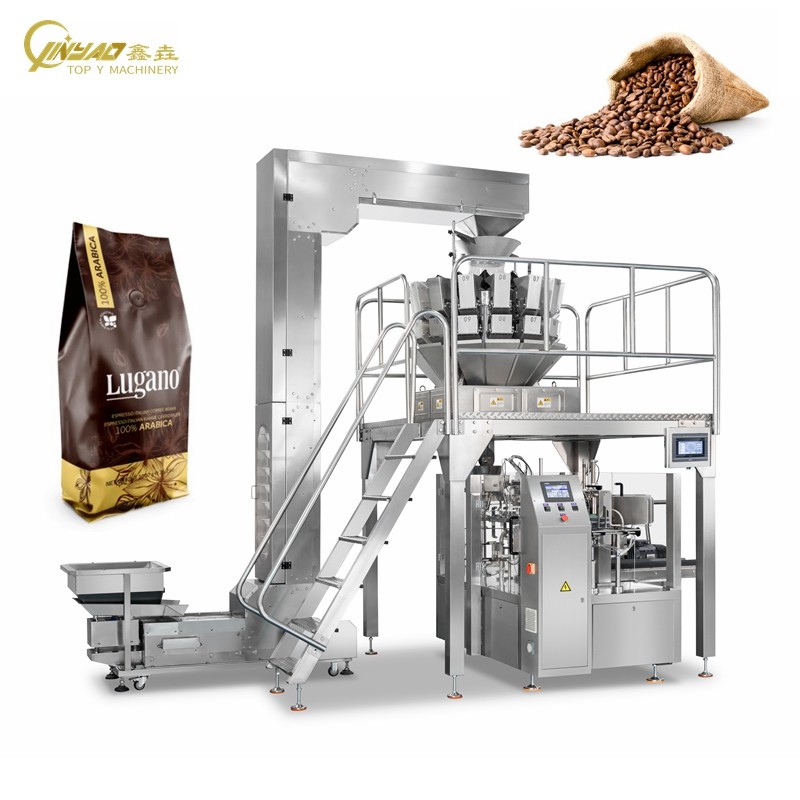

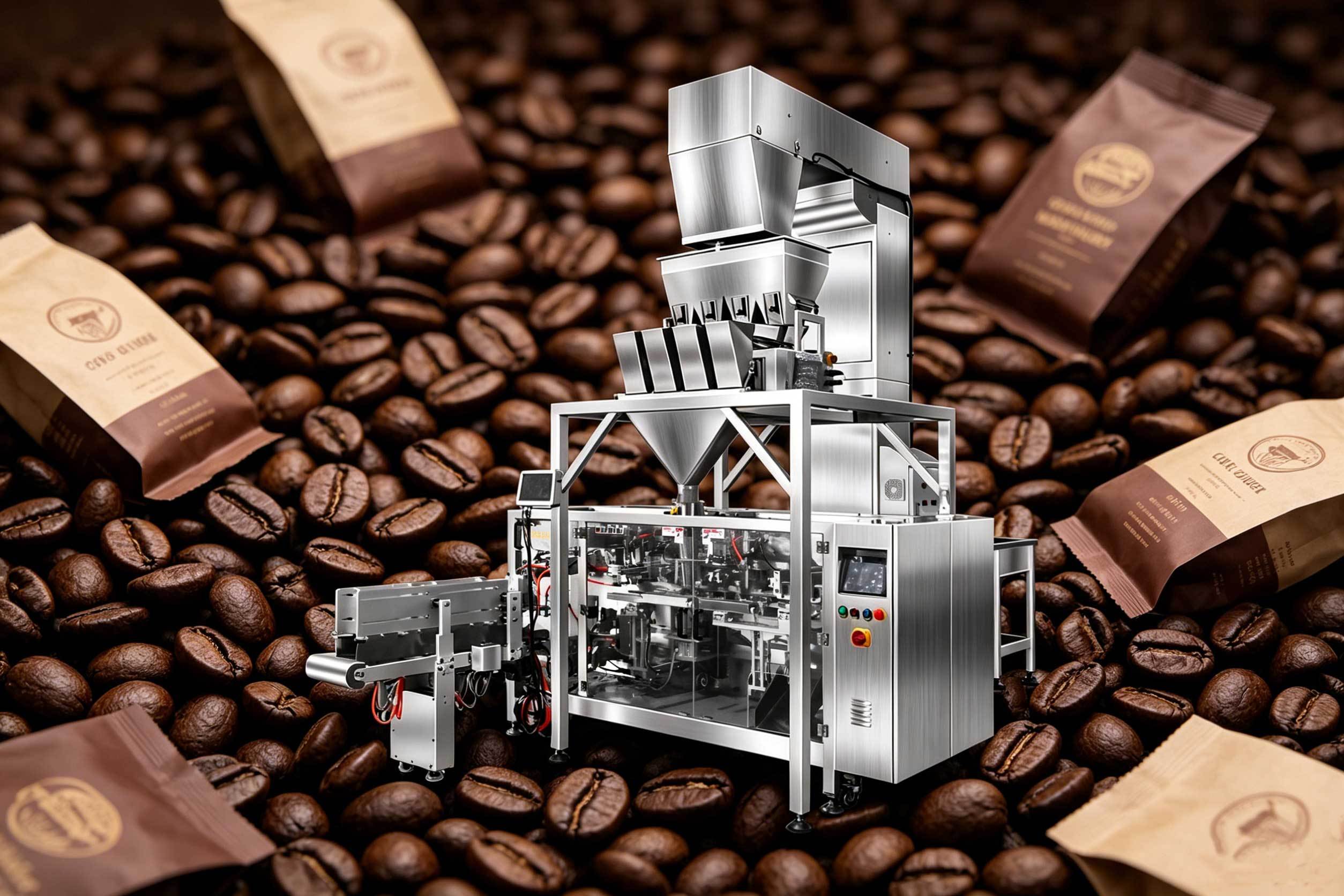

Automatic Coffee Bean Packing Machine Features and Applications
Core Functions: Fully automated coffee bean packaging process: Achieving fully automated operation from pre-made bag loading → bag unloading → bag opening → weighing and filling → degassing/tapping → sealing → coding → finished product output, requiring no manual intervention. Specifically designed for coffee bean granules.
Precise metering and non-destructive feeding: Equipped with a multi-head scale/linear scale, it precisely measures coffee beans, using a gentle horizontal feeding method to reduce breakage and peeling, ensuring bean integrity.
Freshness preservation and aroma retention: Can be equipped with a vacuum degassing/nitrogen filling device to remove air from the bag and fill it with inert gas, isolating oxygen and moisture to prevent oxidation, dampness, and aroma loss, extending shelf life.
Compatible with various bag types to meet market demands: Compatible with various pre-made bags such as zipper stand-up pouches, flat bottom pouches, pouches with one-way valves, and eight-side seal pouches, easily achieving professional coffee packaging with easy-tear openings and degassing valves.
Bag type compatibility | Supports various premade pouches, including coffee bags with degassing valves |
Measurement accuracy | Multi-head weigher with high accuracy, minimal weighing error |
Material protection | Gentle horizontal filling to minimize bean breakage and preserve aroma |
Freshness-locking technology | Optional vacuum/gas flushing system to lock in freshness |
Hygiene and Cleaning | Food-grade 304 stainless steel construction, easy to clean |
Automation level | PLC & touch screen control with auto fault diagnosis |
Additional features | Optional coding, labeling, and custom features |
Automatic Coffee Bean Packing Machine Features
1. Servo motor to control and high speed to work.
2. Easy to operate，adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easy operation and save time.
6. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
7.Use the plastic bearing for liquid products to resist the rust.
8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
9. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
10. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Automatic Coffee Bean Packing Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
