Zipper Bag Doypack Packing Machine 丨Automatic 200g 500g Weigher丨 Instant Dry Yeast Powder Packing Machine丨Factory Price
| Share | |
|---|---|
| Categories | Horizontal Linear Packing Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-MDPL |
| Machine name | Doypack Packing Machine |
| Bag width | 80-300mm |
| Bag length | 100-450mm |
| Bag type | doypack bag, stand up zipper pouch, gusset bag |
| Voltage | 110/220/240/380/415 V |
| Pneumatic parts | Eurovac Vacuum Pump from Taiwan |
| Machine Material | SS#304 |
| Speed | 15-30bags/min |
| Function | Bag opening, filling, sealing, date coding |
| Brand | TOP Y MACHINERY |
| Warranty | 2years |
| FOB port | Shenzhen, Guangzhou, Shunde |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T, Paypal |
| Download |  |
Detail Information
Zipper Bag Doypack Packing Machine Application solutions
Automatic horizontal packing machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.
The flexibility of it allows us to customize the most suitable machine to meet your individual requirements!
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.
Zipper Bag Doypack Packing Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Zipper Bag Doypack Packing Machine Bag Type
Zipper Bag Doypack Packing Machine Pack Materials
Zipper Bag Doypack Packing Machine Detail

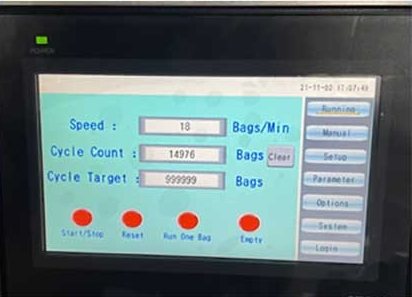

High Speed
1.Highest speed can reach 20bags/min
1.Highest speed can reach 20bags/min
2.It can be adjusted according to filling time

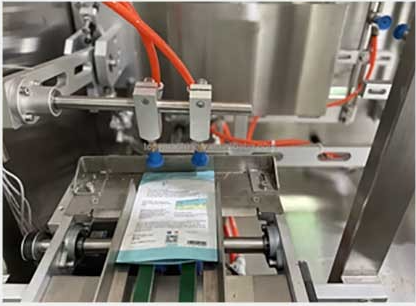

1.Flexible enough to fit different bagdimensions
2.Use the high quality suction cup topick up the bag

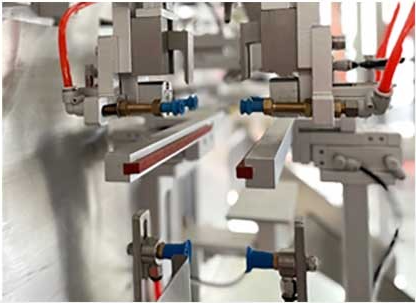

Bag Opening Station
1.Driven by servo motor, easy to adjust
2.Choose the suitable suction cupaccording to bag material

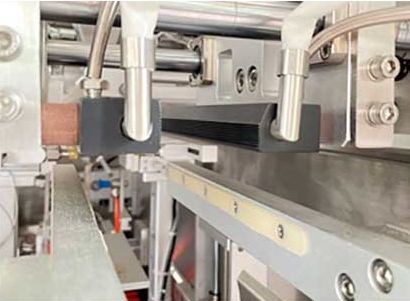

Bag Sealing Station
1.Adjustable temperature
2.Sealing type: heat seal/ultrasonic seal/sewing
