TOP Y Chocolate Packaging Machine丨High-Accuracy Filling Machine丨Gummy Candy Snacks丨 Premade bag packaging
| Share | |
|---|---|
| Categories | Horizontal Linear Packing Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-MDPL |
| Machine name | TOP Y Chocolate Packaging Machine |
| Bag width | 80-300mm |
| Bag length | 100-450mm |
| Bag type | doypack bag, stand up zipper pouch, gusset bag |
| Voltage | 110/220/240/380/415 V |
| Pneumatic parts | Eurovac Vacuum Pump from Taiwan |
| Machine Material | SS#304 |
| Speed | 15-30bags/min |
| Function | Bag opening, filling, sealing, date coding |
| Brand | TOP Y MACHINERY |
| Warranty | 2years |
| FOB port | Shenzhen, Guangzhou, Shunde |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T, Paypal |
| Download |  |
Detail Information

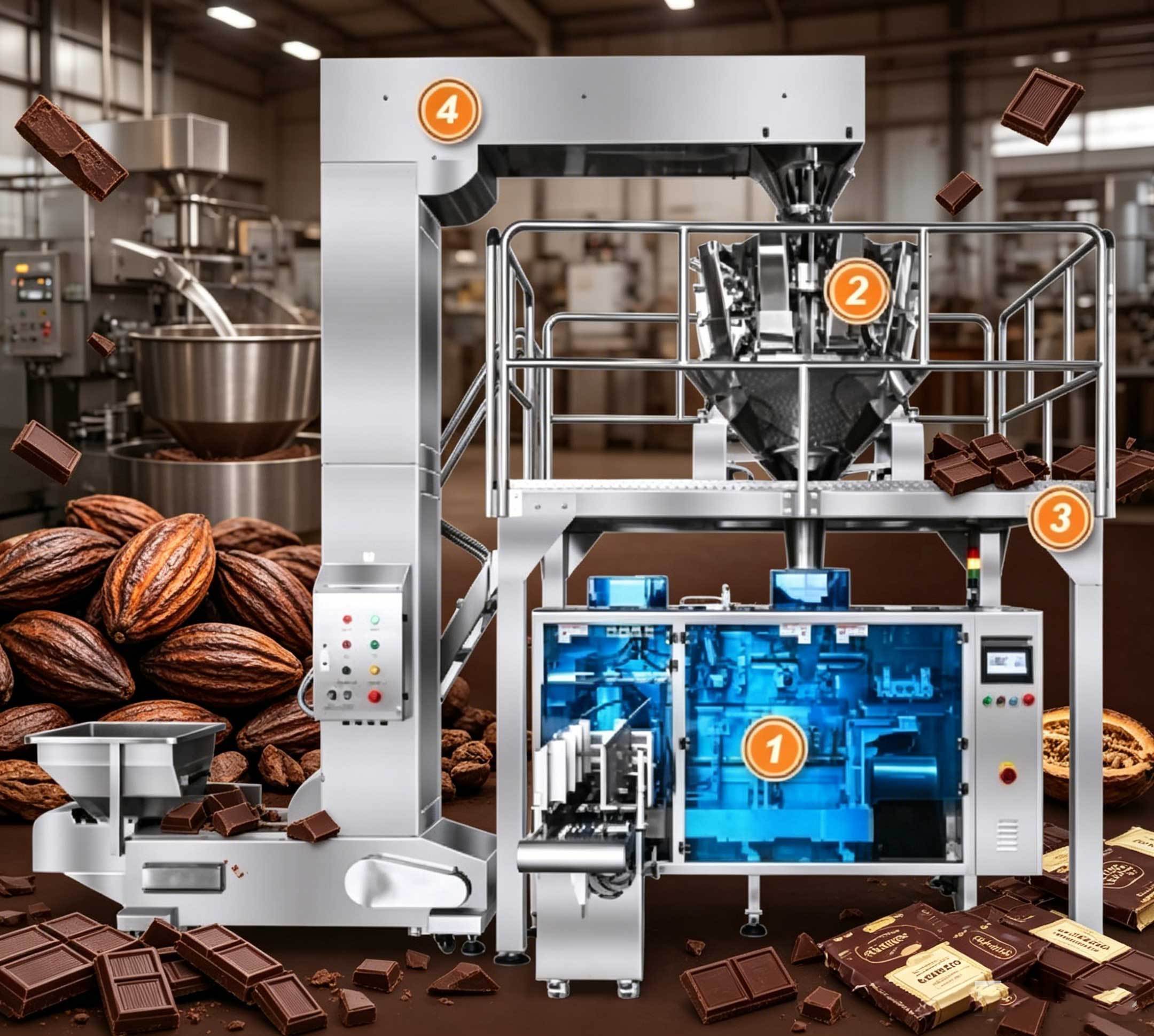

TOP Y Chocolate Packaging Machine Equipment Composition
The horizontal packaging machine is a fully automatic packaging equipment specifically designed for pre-made bagged granules.
Core functions: Automatic bag feeding → bag opening → filling → venting/bag tapping → sealing → coding → finished product output. Key features include High weighing accuracy, good bag shape, easy cleaning, and compatibility with pre-made bags.
TOP Y Chocolate Packaging Machine Features
1. Servo motor to control and high speed to work.
2. Easy to operate，adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easy operation and save time.
6. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
7.Use the plastic bearing for liquid products to resist the rust.
8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
9. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
10. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
TOP Y Chocolate Packaging Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
TOP Y Chocolate Packaging Machine Bag Type
TOP Y Chocolate Packaging Machine Application materials
TOP Y Chocolate Packaging Machine Parts Brand
Why use a combination of "multi-head scale + horizontal packing machining"?
✅ High Speed: Multi-head scales enable fast weighing, and the leveling machine allows for continuous operation.
Suitable materials: nuts, sunflower seeds, peanuts, candy, biscuits, rice, millet, beans, seeds, pet food, freeze-dried pellets, snack pellets, etc.
✅ High Precision: Combined weighing minimizes error, suitable for small-weight, high-value granules.
✅ Intact Granules: Gentle horizontal feeding and minimal vibration from the multi-head scale result in less breakage and a better appearance.
✅ Perfect Bag Shape: Bags are filled flat, resulting in a smooth, square, and bulging-free shape, making packing easier.
✅ Clean and Dust-Free: Sealed structure and negative pressure dust removal ensure food-grade hygiene and easy cleaning.
✅ Universal Compatibility: Compatible with stand-up pouches, zipper bags, and irregularly shaped bags.
Suitable materials: nuts, sunflower seeds, peanuts, candy, biscuits, rice, millet, beans, seeds, pet food, freeze-dried pellets, snack pellets, etc.
