6 Head Viscous Paste Filling Machine - Shampoo, Detergent & Ointment Filler
| Share | |
|---|---|
| Categories | Paste Filling Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-FM |
| packaging type | Cans, Bottles, Bags, Jar, Other |
| key selling points | Energy Saving |
| core components | Motor, PLC, Engine |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Product name | Paste filling machine |
| Filling product | Peanut butter, spice paste etc |
| FOB port | GUANGZHOU,SHENZHEN,FOSHAN |
| Terms of Payment | T/T |
| Download |  |

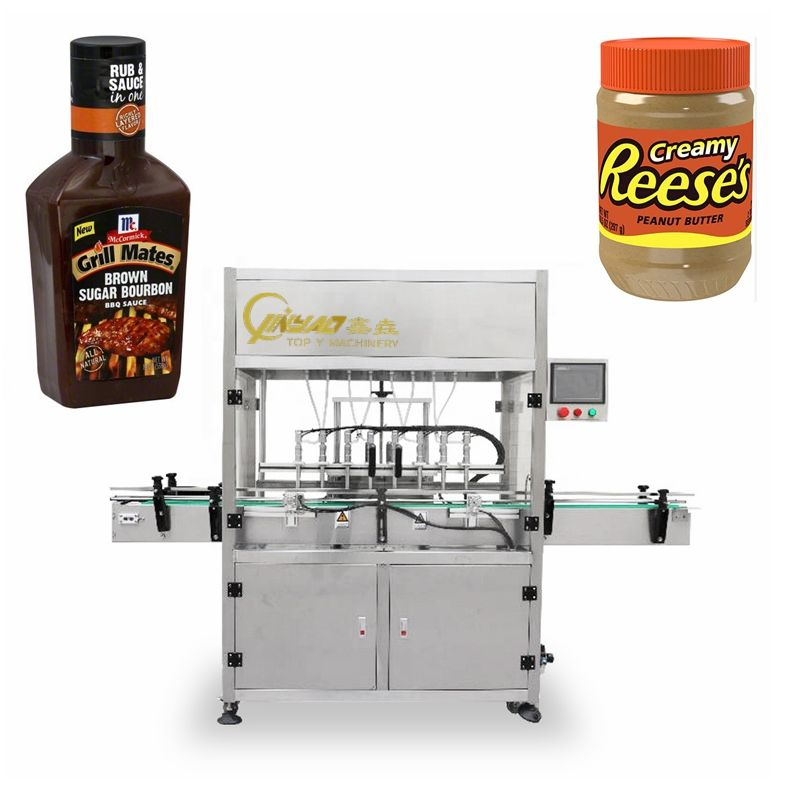

6 Head Viscous Paste Filling Machine for Shampoo, Detergent & Ointment
High-output viscous filling for shampoo, detergent, ointment, honey and thick paste — no-clog piston system, food-grade stainless build, plug-and-play bottle and jar filling.
- 6 High-Output Heads
- No-Clog Viscous Design
- PLC Touch-Screen Control
- Food-Grade 304 Stainless
A Viscous Paste Filling Machine That Never Clogs
Shampoo, detergent and ointment are thick, sticky and shear-sensitive. Ordinary fillers clog, string and under-fill. TOPY-FM uses a 6-head positive-displacement piston system with anti-drip nozzles — engineered for high-viscosity personal care and paste filling.
(weight-based consistency)
(high output)
(adjustable)
(CIP-friendly)
Key Components of a Reliable Viscous Paste Filling Machine
Every module of this viscous filling machine is selected for reliable, string-free production of thick products.
6 Piston Filling Heads
Six piston heads meter exact paste volume per cycle for high-output viscous filling.
Anti-String Nozzles
Clean-cut nozzle mouths prevent stringing and dripping between bottles and jars.
Hygienic 304 Build
Stainless-steel structure and tidy filling session keep personal care products clean.
Brand Motor + PLC
Famous-brand motor and PLC touch-screen control deliver stable, repeatable filling.
Why Personal Care & Paste Factories Choose This Filler
- No-Clog Viscous HandlingPositive-displacement piston keeps shampoo and ointment flowing without clogging or stringing.
- Weight-Consistent Accuracy±0.5% repeatability keeps every unit within spec — less giveaway, fewer complaints.
- Anti-Drip, Less WastePrecision nozzles eliminate drips between cycles, keeping the filling area clean.
- Fast ChangeoverQuick-adjust filling range and tool-free cleaning support multi-SKU production.
More Than a Filler — a High-Output Growth Engine
- Higher Output, Fewer Hands6-head automation replaces manual filling, cutting labor cost and human error.
- Less Product Giveaway±0.5% accuracy on expensive products means measurable savings in every shift.
- OEM / ODM CustomizationBrand your machine with your logo and colors; private-label supply supported.
- One-Stop Line ExtensionAdd capping, sealing and labeling machines to build a complete filling line.
Application: Shampoo, Detergent & Ointment Filling
TOPY-FM is built around viscous personal care and paste filling — the applications below extend the same machine to other thick, semi-solid products.
ShampooPersonal care
DetergentDaily chemical
OintmentPharma / careViscous Filling Machine for Bottles & Jars
Compatible with standard personal care packaging — squeeze bottles, jars and tubes.
Squeeze BottlesShampoo & detergent bottlesWide JarsOintment & cream jarsPump BottlesLotion & gel pumpsTOPY-FM Viscous Paste Filling Machine Specifications
| Model | TOPY-FM |
|---|---|
| Filling Type | Piston (positive displacement) — high-viscosity personal care |
| Filling Heads | 6 heads (configurable) |
| Filling Range | 100 – 1000 ml per head (adjustable) |
| Capacity | Up to 2000 bottles/hour* |
| Filling Accuracy | ±0.5% |
| Viscosity Range | Low to very high (ointment grade) |
| Power | 1.1 kW (filler) · AC220V 50/60Hz |
| Machine Dimension | 2000(L) × 1100(W) × 2200(H) mm* |
| Air Source | 0.6 – 0.8 MPa clean, stable air supply |
| Contact Parts | Food-grade 304 stainless steel |
| Control System | PLC + touch screen |
| Optional Upgrades | Capping machine · Sealing machine · Labeling machine |
Build a Complete Viscous Filling Production Line
TOPY-FM integrates seamlessly with upstream and downstream machines for end-to-end automation.
Bottle Unscrambler
6-Head Filling(TOPY-FM)
Screw Capping
Labeling
Bottle CollectingComplete Your Line with Add-On Machines
Capping MachineScrew-cap tightening for bottles & jars
Sealing MachineInduction / heat sealing for leak-proof packs
11 Years of Packaging & Filling Expertise
- Professional manufacturer focused on packaging & filling machines since 2011
- Machinery test report provided before shipment
- Video outgoing inspection available for every order
- OEM / ODM private-label support for distributors & brands
- Global export experience — trusted by food brands worldwide
Frequently Asked Questions
Can it fill very thick ointment?
Yes. The positive-displacement piston design handles ointment-grade viscosity. Share your product's viscosity for confirmation.
Will shampoo string or foam during filling?
Anti-string nozzle design and piston metering minimize stringing and foam generation during filling.
How long does cleaning and changeover take?
Contact parts are stainless steel with simplified disassembly, supporting fast cleaning between products.
What about warranty and after-sales support?
We provide testing before shipment, video outgoing inspection, and worldwide shipping with installation guidance.
Can I add capping and labeling later?
Absolutely. TOPY-FM is line-ready: add our capping, sealing and labeling machines anytime.
Ready to Automate Your Viscous Paste Filling?
Tell us your product, container and target output in the inquiry form below — our engineers will recommend the right TOPY-FM configuration and respond with a tailored quotation. You can also download the catalog to explore the full filling machine range.
