Glass Bottle Weighing Filling Machine - Milk, Juice & Sauce Filler
| Share | |
|---|---|
| Categories | Paste Filling Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-FM |
| packaging type | Cans, Bottles, Bags, Jar, Other |
| key selling points | Energy Saving |
| core components | Motor, PLC, Engine |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Product name | Paste filling machine |
| Filling product | Peanut butter, spice paste etc |
| FOB port | GUANGZHOU,SHENZHEN,FOSHAN |
| Terms of Payment | T/T |
| Download |  |

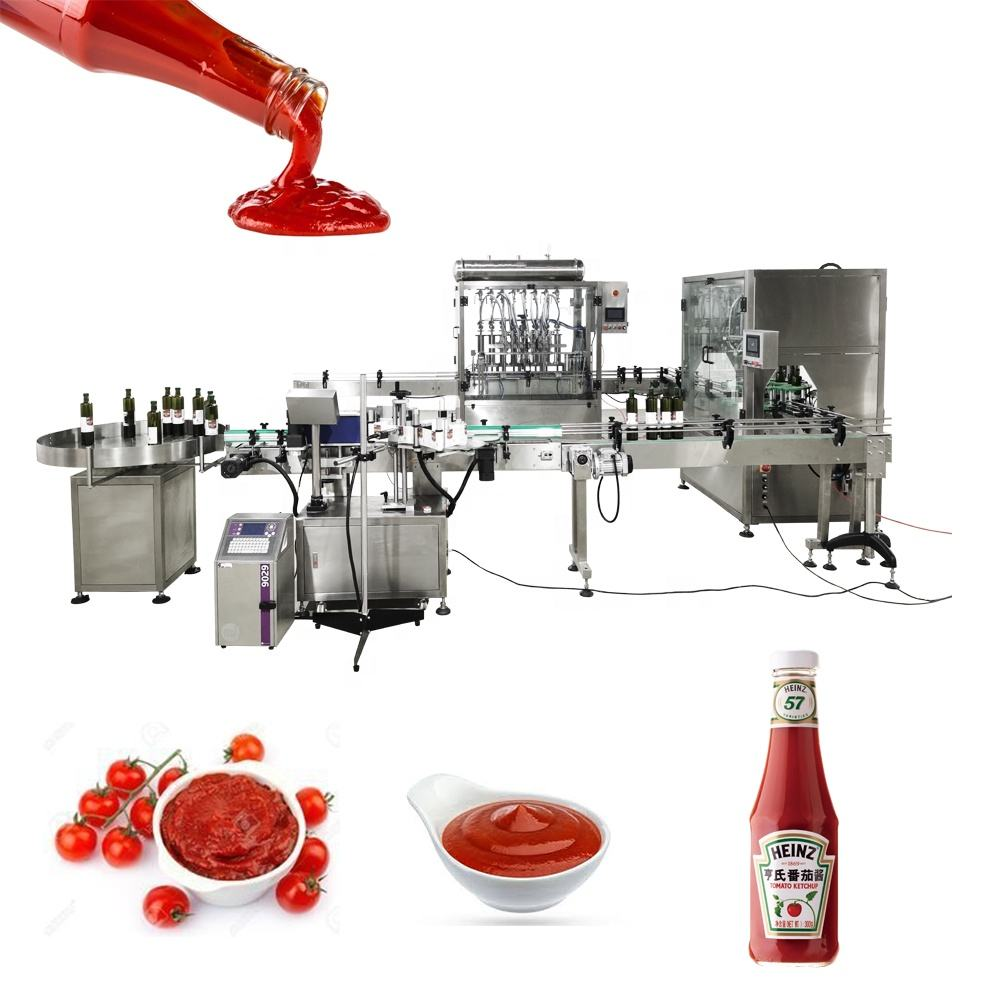

Glass Bottle Weighing Filling Machine for Milk, Juice & Sauce
Weigh-based precision filling for glass bottles — gram-level accuracy for milk, juice, beer, wax and sauce, gentle glass-safe handling, food-grade stainless build.
- Gram-Level Weighing Accuracy
- Glass-Safe Handling
- PLC Touch-Screen Control
- Food-Grade 304 Stainless
A Weighing Filling Machine That Measures Every Gram
Glass bottle products like milk, juice and sauce demand exact fill weight — not just volume. TOPY-FM uses a weighing-based filling system with gram-level accuracy, gentle glass-safe transport and food-grade stainless construction.
(gram-level)
(expandable)
(adjustable)
(CIP-friendly)
Key Components of a Reliable Weighing Filling Machine
Every module of this glass bottle weighing filler is selected for precise, glass-safe production.
Weighing Filling Heads
Multiple weighing heads measure exact fill weight per bottle for consistent dosing.
Gentle Dosing Nozzles
Smooth nozzle mouths deliver clean filling without splashing on glass surfaces.
Glass-Safe Transport
Stainless conveying and bottle handling designed to minimize glass breakage.
Brand Motor + PLC
Famous-brand motor and PLC touch-screen control deliver stable, repeatable weighing.
Why Beverage & Sauce Factories Choose This Filler
- Gram-Level AccuracyWeigh-based metering beats volume-based filling for consistency and regulatory compliance.
- Glass-Safe HandlingGentle conveying and filling reduce glass breakage and line downtime.
- Anti-Drip, Less WastePrecision nozzles eliminate drips between cycles, keeping the filling area clean.
- Fast ChangeoverQuick-adjust fill weight and tool-free cleaning support multi-product production.
More Than a Filler — a Compliance-Ready Growth Engine
- Higher Output, Fewer HandsAutomated weighing filling replaces manual filling, cutting labor cost.
- Less Product GiveawayGram-level accuracy on beverages means measurable savings in every shift.
- Regulatory ComplianceWeigh-based filling helps meet net-content regulations with confidence.
- One-Stop Line ExtensionAdd capping, sealing and labeling machines to build a complete line.
Application: Milk, Juice & Sauce Weighing Filling
TOPY-FM is built around weighing-based glass bottle filling — the applications below extend the same machine to other liquid products.
MilkDairy beverage
JuiceFruit juice
SauceLiquid condimentWeighing Filling Machine for Glass Bottles
Optimized for glass bottles, also compatible with cans and rigid containers.
Glass BottlesMilk & juice bottlesGlass JarsSauce & condiment jarsMetal CansBeverage & food cansTOPY-FM Weighing Filling Machine Specifications
| Model | TOPY-FM |
|---|---|
| Filling Type | Weighing-based (load cell) — gram-level accuracy |
| Filling Stations | 8 stations (configurable) |
| Filling Range | 100 – 1000 ml / 100 – 1000 g (adjustable) |
| Capacity | Up to 2000 bottles/hour* |
| Weighing Accuracy | ±1 g |
| Container Type | Glass bottle optimized, cans & jars supported |
| Power | 1.1 kW (filler) · AC220V 50/60Hz |
| Machine Dimension | 2000(L) × 1100(W) × 2200(H) mm* |
| Air Source | 0.6 – 0.8 MPa clean, stable air supply |
| Contact Parts | Food-grade 304 stainless steel |
| Control System | PLC + touch screen |
| Optional Upgrades | Capping machine · Sealing machine · Labeling machine |
Build a Complete Weighing Filling Production Line
TOPY-FM integrates seamlessly with upstream and downstream machines for end-to-end automation.
Bottle Unscrambler
Weighing Filling(TOPY-FM)
Screw Capping
Labeling
Bottle CollectingComplete Your Line with Add-On Machines
Capping MachineScrew-cap tightening for bottles & jars
Sealing MachineInduction / heat sealing for leak-proof packs
11 Years of Packaging & Filling Expertise
- Professional manufacturer focused on packaging & filling machines since 2011
- Machinery test report provided before shipment
- Video outgoing inspection available for every order
- OEM / ODM private-label support for distributors & brands
- Global export experience — trusted by food brands worldwide
Frequently Asked Questions
How accurate is the weighing?
Gram-level accuracy (±1 g), which helps meet net-content regulations and minimize giveaway.
Can it handle glass bottles safely?
Yes. The conveying and filling system is designed for gentle glass-safe handling to reduce breakage.
How long does cleaning and changeover take?
Contact parts are stainless steel with simplified disassembly, supporting fast cleaning between products.
What about warranty and after-sales support?
We provide testing before shipment, video outgoing inspection, and worldwide shipping with installation guidance.
Can I add capping and labeling later?
Absolutely. TOPY-FM is line-ready: add our capping, sealing and labeling machines anytime.
Ready to Automate Your Weighing Filling?
Tell us your product, container and target output in the inquiry form below — our engineers will recommend the right TOPY-FM configuration and respond with a tailored quotation. You can also download the catalog to explore the full filling machine range.
