Leading Manufacturer of Intelligent Food Packaging Machinery
Automatic Jar Filling Machine - Syrup, Glaze & Brown Sugar Paste Filler
| Share | |
|---|---|
| Categories | Paste Filling Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-FM |
| packaging type | Cans, Bottles, Bags, Jar, Other |
| key selling points | Energy Saving |
| core components | Motor, PLC, Engine |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Product name | Paste filling machine |
| Filling product | Peanut butter, spice paste etc |
| FOB port | GUANGZHOU,SHENZHEN,FOSHAN |
| Terms of Payment | T/T |
| Download |  |

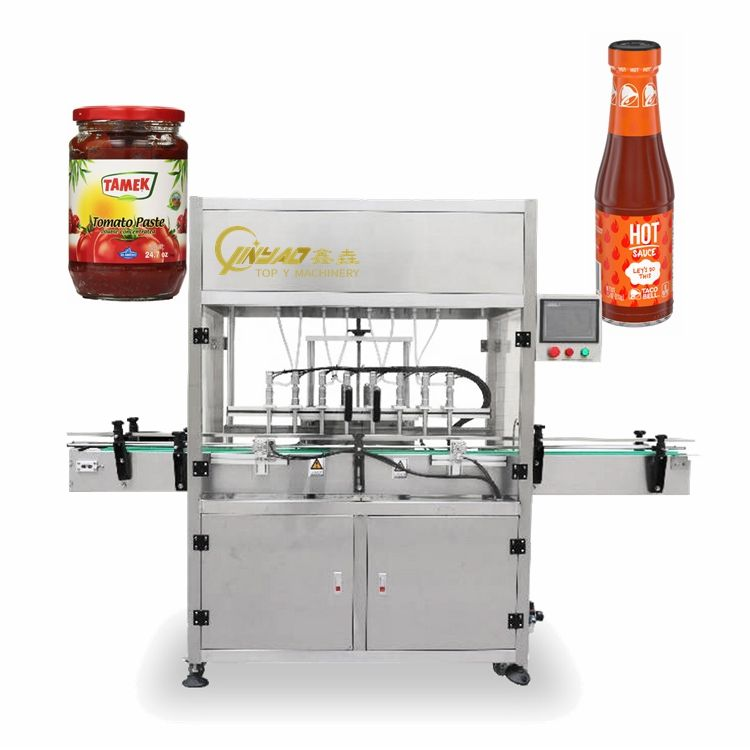

Automatic Jar Filling Machine for Syrup, Glaze & Brown Sugar Paste
Wide-mouth jar filling for syrup, glaze and brown sugar paste — temperature-friendly dosing, food-grade stainless build, plug-and-play sauce bottle production.
- Wide-Mouth Jar Compatible
- Syrup & Glaze Expert
- PLC Touch-Screen Control
- Food-Grade 304 Stainless
A Jar Filling Machine That Handles Sticky Sweetness
Syrup, glaze and brown sugar paste are sweet, sticky and temperature-sensitive. Ordinary fillers string, drip and clog. TOPY-FM uses a positive-displacement piston system with anti-string nozzles — engineered for wide-mouth jar filling of sauces, syrups and glazes.
(weight-based consistency)
(expandable)
(adjustable)
(CIP-friendly)
Key Components of a Reliable Jar Filling Machine
Every module of this syrup filling machine is selected for clean, string-free handling of sticky products.
Piston Filling Heads
Multiple piston heads meter exact volume per cycle; head count matches your jar output.
Anti-String Nozzles
Clean-cut nozzle mouths prevent syrup stringing and dripping between jars.
Hygienic 304 Build
Stainless-steel structure and tidy filling session keep sauces food-safe.
Brand Motor + PLC
Famous-brand motor and PLC touch-screen control deliver stable, repeatable filling.
Why Sauce & Syrup Factories Choose This Filler
- String-Free SyrupsPiston metering and anti-string nozzles keep syrups and glazes flowing cleanly.
- Weight-Consistent Accuracy±0.5% repeatability keeps every jar within spec — less giveaway, fewer complaints.
- Anti-Drip, Less WastePrecision nozzles eliminate drips between cycles, keeping the filling area clean.
- Fast ChangeoverQuick-adjust filling range and tool-free cleaning support multi-SKU production.
More Than a Filler — a Sauce & Syrup Growth Engine
- Higher Output, Fewer HandsAutomated filling replaces manual filling, cutting labor cost and human error.
- Less Product Giveaway±0.5% accuracy on expensive syrups means measurable savings in every shift.
- OEM / ODM CustomizationBrand your machine with your logo and colors; private-label supply supported.
- One-Stop Line ExtensionAdd capping, sealing and labeling machines to build a complete line.
Application: Syrup, Glaze & Brown Sugar Paste Filling
TOPY-FM is built around jar filling for syrups and glazes — the applications below extend the same machine to other bottled sauces and pastes.
SyrupSweet liquid
GlazeCoating sauce
Brown Sugar PasteSweet pasteJar Filling Machine for Wide-Mouth Containers
Optimized for wide-mouth jars, also compatible with sauce bottles and cans.
Wide-Mouth JarsSyrup & glaze jarsSauce BottlesBBQ & glaze bottlesMetal CansTin & aluminum cansTOPY-FM Jar Filling Machine Specifications
| Model | TOPY-FM |
|---|---|
| Filling Type | Piston (positive displacement) — syrups, glazes & pastes |
| Filling Heads | 8 heads (configurable) |
| Filling Range | 100 – 1000 ml per head (adjustable) |
| Capacity | Up to 2000 jars/hour* |
| Filling Accuracy | ±0.5% |
| Jar Type | Wide-mouth optimized, bottles & cans supported |
| Power | 1.1 kW (filler) · AC220V 50/60Hz |
| Machine Dimension | 2000(L) × 1100(W) × 2200(H) mm* |
| Air Source | 0.6 – 0.8 MPa clean, stable air supply |
| Contact Parts | Food-grade 304 stainless steel |
| Control System | PLC + touch screen |
| Optional Upgrades | Capping machine · Sealing machine · Labeling machine |
Build a Complete Jar Filling Production Line
TOPY-FM integrates seamlessly with upstream and downstream machines for end-to-end automation.
Bottle Unscrambler
Piston Filling(TOPY-FM)
Screw Capping
Labeling
Bottle CollectingComplete Your Line with Add-On Machines
Capping MachineScrew-cap tightening for bottles & jars
Sealing MachineInduction / heat sealing for leak-proof packs
11 Years of Packaging & Filling Expertise
- Professional manufacturer focused on packaging & filling machines since 2011
- Machinery test report provided before shipment
- Video outgoing inspection available for every order
- OEM / ODM private-label support for distributors & brands
- Global export experience — trusted by food brands worldwide
Frequently Asked Questions
Can it fill thick syrup without stringing?
Yes. The anti-string nozzle design and piston metering keep syrups and glazes flowing cleanly.
Does it support wide-mouth jars?
Yes, wide-mouth jars are the primary container type — share your jar diameter during inquiry.
How long does cleaning and changeover take?
Contact parts are stainless steel with simplified disassembly, supporting fast cleaning between products.
What about warranty and after-sales support?
We provide testing before shipment, video outgoing inspection, and worldwide shipping with installation guidance.
Can I add capping and labeling later?
Absolutely. TOPY-FM is line-ready: add our capping, sealing and labeling machines anytime.
Ready to Automate Your Jar Filling?
Tell us your product, container and target output in the inquiry form below — our engineers will recommend the right TOPY-FM configuration and respond with a tailored quotation. You can also download the catalog to explore the full filling machine range.
