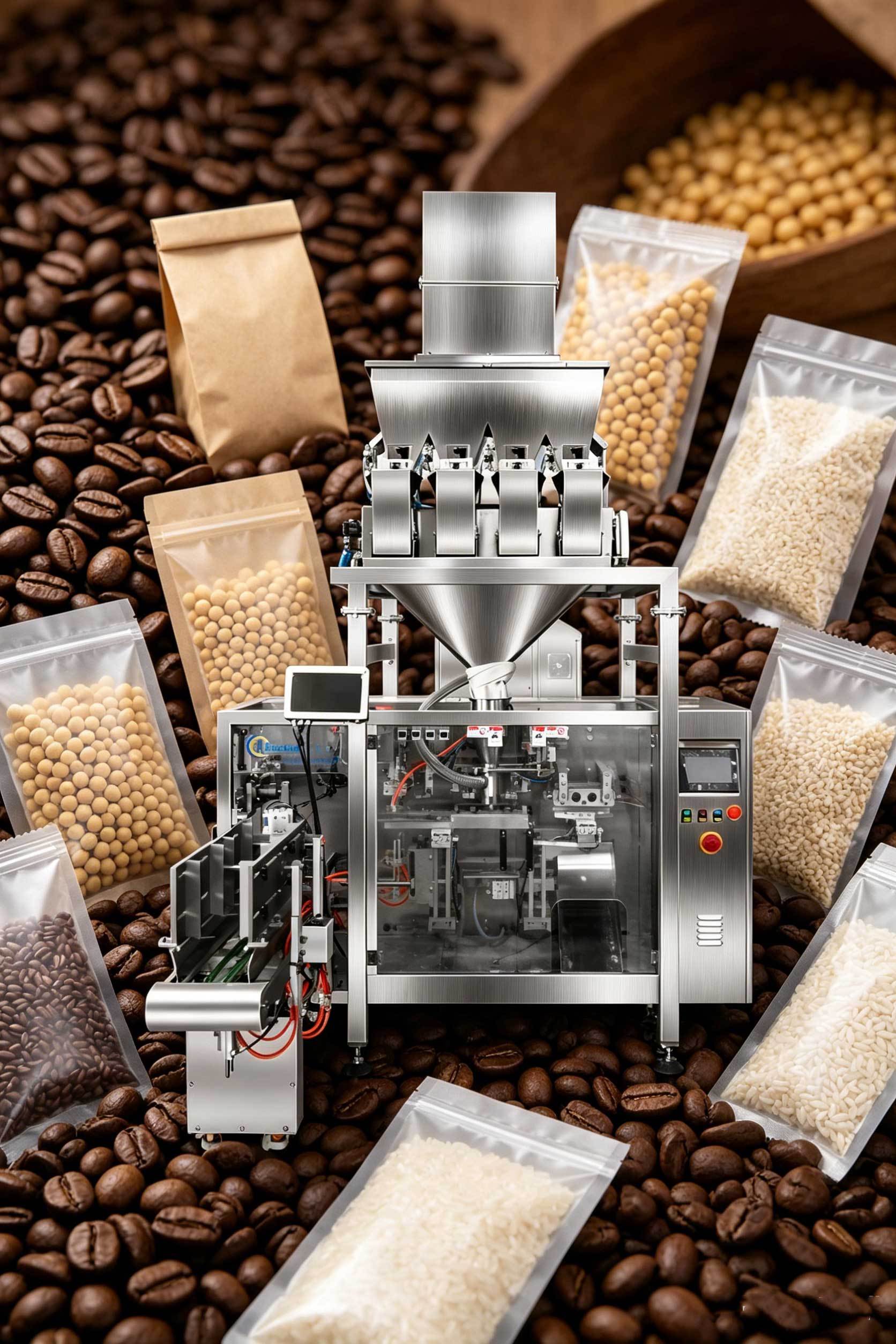

Fully Automatic Packing Machine丨1kg 5kg 10kg Rice Packaging丨Soya Beans Packaging丨 Vegetable Seeds Filling 丨Premade Pouch Packaging Machinery
| Share | |
|---|---|
| Categories | Horizontal Linear Packing Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-MDPL |
| Machine name | Fully Automatic Packing Machine |
| Bag width | 80-300mm |
| Bag length | 100-450mm |
| Bag type | doypack bag, stand up zipper pouch, gusset bag |
| Voltage | 110/220/240/380/415 V |
| Pneumatic parts | Eurovac Vacuum Pump from Taiwan |
| Machine Material | SS#304 |
| Speed | 15-30bags/min |
| Function | Bag opening, filling, sealing, date coding |
| Brand | TOP Y MACHINERY |
| Warranty | 2years |
| FOB port | Shenzhen, Guangzhou, Shunde |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T, Paypal |
| Download |  |
Detail Information
Fully Automatic Packing Machine Features
1.Compatible with prefabricated bags, extremely versatile bag types
Mainly designed for prefabricated bags: Suitable for stand-up pouches, gusseted pouches, zippered pouches, three-side/four-side sealed pouches, box-type bags, irregularly shaped bags, and pouches with spouts.
Horizontal bag feeding, side-opening bag filling, no contamination of the sealing area, stable zipper opening and closing, crisp and aesthetically pleasing bag shape, excellent shelf display effect.
Compatible with prefabricated bags made of composite film, aluminum foil, kraft paper, and other materials.
2.Widely adaptable to granular materials, precise metering.
Suitable for: coffee beans, soybeans, rice, seeds, nuts, grains, granular food/chemical/agricultural granules, etc.
Can be equipped with multi-head weighing/linear weighing/volume metering, with an accuracy of ±0.1~1%, anti-breakage, dust-proof, and smooth feeding.
Modular material changing allows for quick switching between different granular sizes.
3.Fully Automated Process, High Efficiency and Stability
Fully Automated Process: Automatic bag picking → coding → bag opening → filling → compaction → heat sealing → finished product output
Speed: 24–27 bags/minute (depending on bag type/material), servo-driven, stable operation, low noise, low failure rate
Intelligent Detection: No bag/failed bag opening, no filling, no sealing, bag can be reused, reducing waste
4.Intelligent and easy to operate, flexible expansion
PLC + touch screen (Siemens), parameter storage, one-click specification change, multi-language interface
Expandable: gas inflation/vacuum, metal detection, weight re-inspection, coding, dust removal, dual-output speed increase
Fully Automatic Packing Machine Specifications
Model No. | TOPY-MDPL1 | TOPY-MDPL2 | TOPY-MDPL3 |
Bag Width | 80-200mm | 100-260mm | 150-300mm |
Bag Length | 100-300mm | 150-400mm | 180-450mm |
Packing Speed | 24-27bags/min | 20-24bags/min | 15-20bags/min |
Bag Type | Stand-up bag, pillow bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan | ||
Fully Automatic Packing Machine Optional equipment
Zipper Opener
Prepares the zipper pouch for filling, ensures clean sealing area, reduces manual intervention and bag damage rate, and enables high-speed automatic packaging of resealable pouches.
Hopper Shaker
Ensures consistent, smooth material flow to the weigher, improves weighing accuracy, reduces residue, and minimizes downtime caused by jamming.
Date Printer
Prints production/expiry dates, batch numbers, traceability codes, and variable information on pouches, ensuring regulatory compliance, product traceability, and error-free high-speed production.
Bag Tapper
It specially taps the pouch bottom to settle and compact granular materials, eliminating hollow bottoms. It exhausts trapped air for better sealing, keeps pouches uniform in shape, and reduces damage during transportation.
Fully Automatic Packing Machine Bag type and materials
Fully Automatic Packing Machine Parts Brand
