Doypack Bag Packing Machine丨Fully Automatic Food Filling丨 Beans Packing Machine丨Sugar Salt Pouch Packing Machine
| Share | |
|---|---|
| Categories | Horizontal Linear Packing Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-MDPL |
| Machine name | Doypack Bag Packing Machine |
| Bag width | 80-300mm |
| Bag length | 100-450mm |
| Bag type | doypack bag, stand up zipper pouch, gusset bag |
| Voltage | 110/220/240/380/415 V |
| Pneumatic parts | Eurovac Vacuum Pump from Taiwan |
| Machine Material | SS#304 |
| Speed | 15-30bags/min |
| Function | Bag opening, filling, sealing, date coding |
| Brand | TOP Y MACHINERY |
| Warranty | 2years |
| FOB port | Shenzhen, Guangzhou, Shunde |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T, Paypal |
| Download |  |
Detail Information

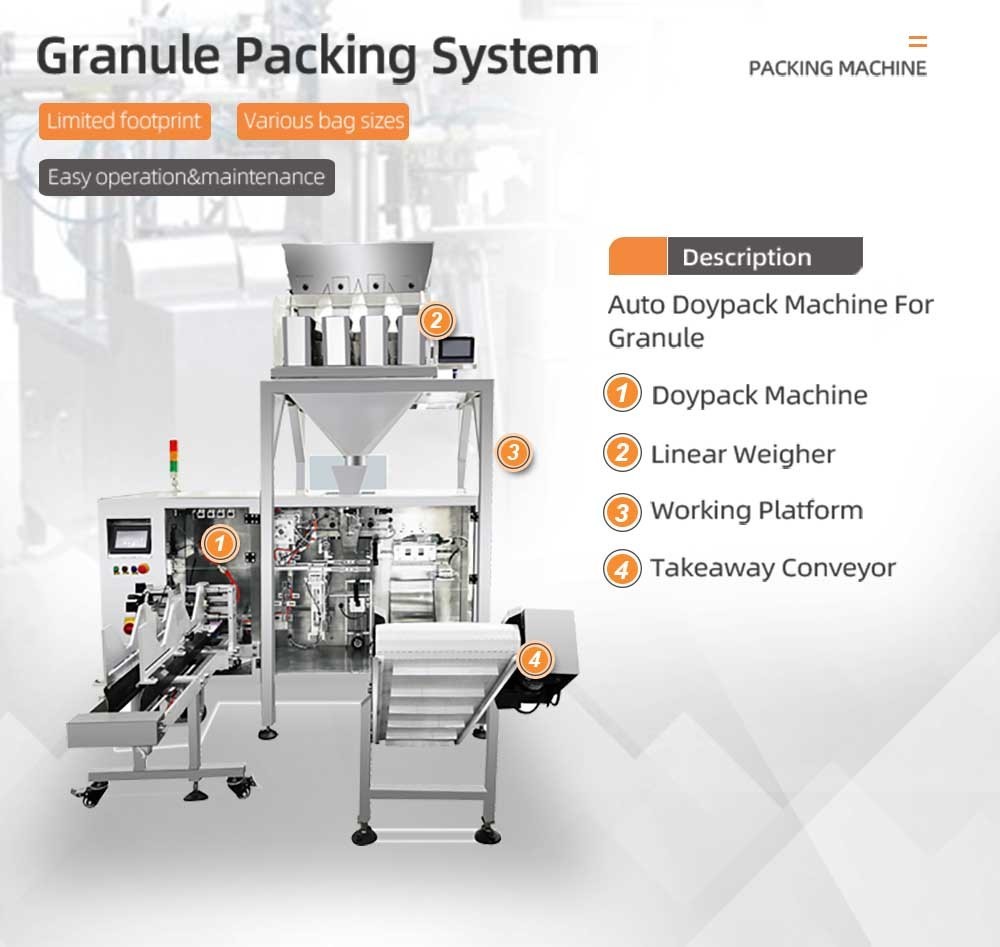

Doypack Bag Packing Machine+4 head scale Features and advantages
This machine integrates weighing, feeding, bag forming, filling, sealing and coding. Equipped with 4-head linear weigher, it is ideal for various granular materials with high accuracy and stable performance, widely used in food, agriculture and daily chemical industries.
1. Four independent weighing hoppers with high-precision sensors work alternately to boost efficiency. Weighing accuracy within ±1%. Suitable for single material or mixed granules packaging.
2. Material contact parts adopt SUS304 stainless steel, anti-rust and corrosion resistant, meeting food safety standards. Detachable hoppers for easy cleaning.
3. Equipped with PLC and bilingual touch screen. Support parameter setting and formula storage. Simple operation for all operators.
4. Compatible with 3-side seal, back seal, 4-side seal pouches and various packing films. Adjustable weighing range for different requirements
5. Compact structure with small footprint, cost-effective and reliable. Low failure rate and easy daily maintenance.
1. Servo motor to control and high speed to work.
2. Easy to operate，adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easy operation and save time.
6. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
7.Use the plastic bearing for liquid products to resist the rust.
8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
9. With different feeders changed to pack solid, liquid, thick liquid,powder and so on
10. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Doypack Bag Packing Machine Technical Specifications
Bag Width | 80-200mm |
Bag Length | 100-300mm |
Packing Speed | 24-27bags/min |
Bag Type | Stand-up bag, pillow bag,3-side 4-side Seal |
Power Supply | 110V/220V/380V/415V, 50/60HZ |
Pneumatic Parts | EUROVAC vacuum pump, Pneumatic component Airtac from Taiwan |
Weighing accuracy | ±1% |
Material Contact Part | SUS304 Stainless Steel |
Weighing Range | 10g - 2000g |

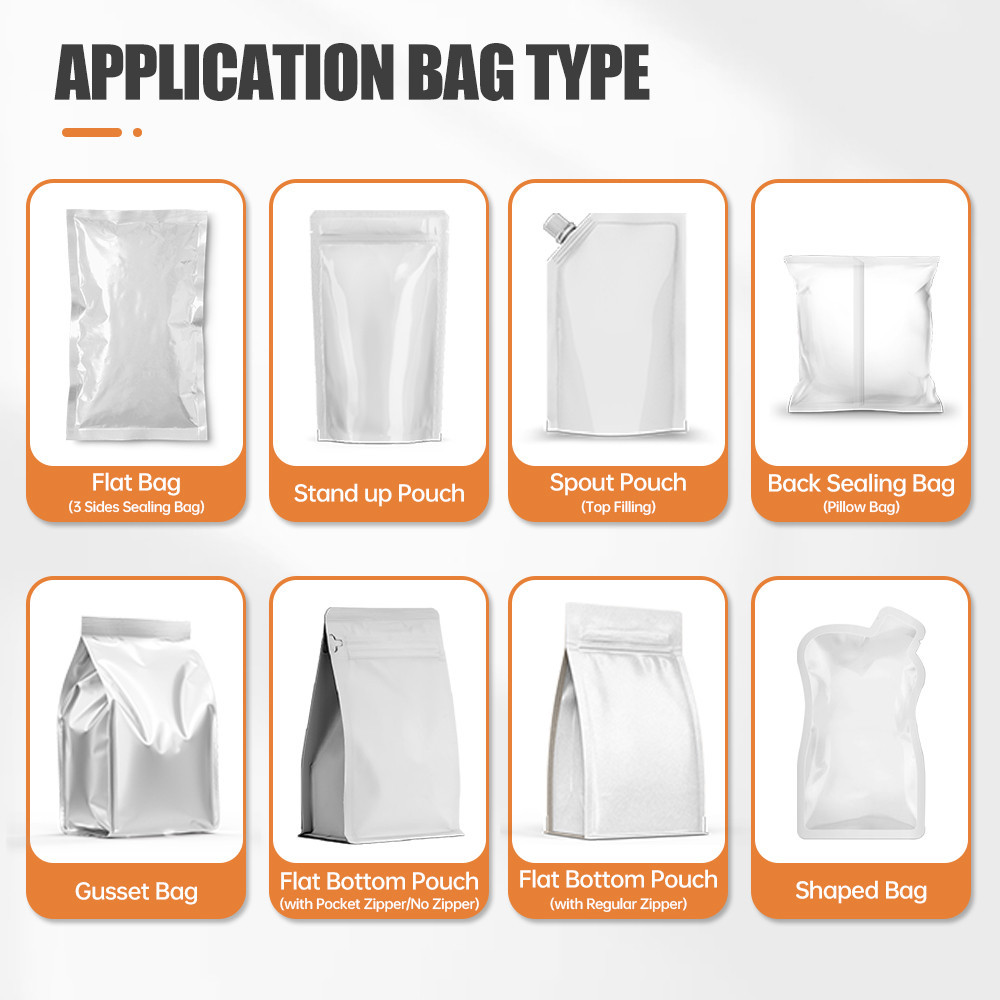

Doypack Bag Packing Machine Bag Type and Packaging Materials

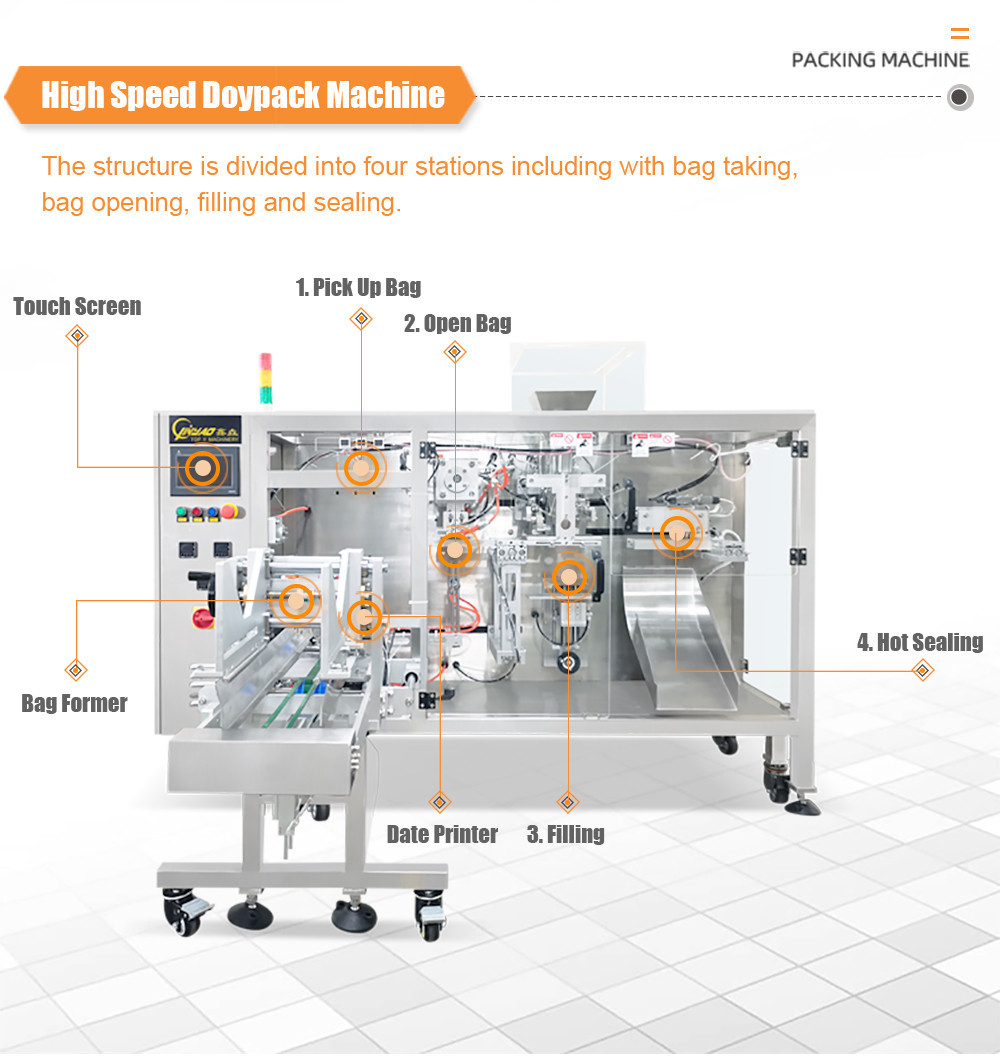

Doypack Bag Packing Machine Details
High Speed
1.Highest speed can reach 20 bags/min
2.It can be adjusted according to filling time
Bag Feeder and Bag Packing Up
1.Flexible enough to fit different bag dimensions
2.Use the high quality suction cup to pick up the bag
Bag Opening Station
1.Driven by servo motor, easy to adjust
2.Choose the suitable suction cup according to bag material
Bag Sealing Station
1.Adjustable temperature
2.Sealing type: heat seal/ultrasonic seal/sewing
Doypack Bag Packing Machine Exhibition photos / Review photos / Packing and shipping photos
We actively participate in various well-known packaging machinery exhibitions worldwide all year round. At our booth, all machines are fully assembled and ready for demonstration.
Customers can take a close look at every part of the equipment, test its functions and communicate face to face with our technical team. It is a great opportunity for you to fully know our product quality and working performance before placing an order.
With 15 years of industry experience, we focus on developing and manufacturing practical and efficient packing machines.
All reviews and photos on the left come from our actual clients. After long-term operation on production lines, our machines keep working smoothly with high efficiency and stable weighing accuracy. Customers are satisfied with the overall performance, easy operation and low failure rate.
We keep improving products according to market demands, to bring better solutions for every partner.
All machines adopt standard export wooden case packaging. Strict protection ensures no damage during international transportation.
We follow standard export packing procedures. The machine is well fixed and protected before delivery. Complete shipping documents will be provided together with goods.
