Fully Automatic Peanut Butter Filling Machine | Condiment Paste Filling System
| Share | |
|---|---|
| Categories | Paste Filling Machine |
| Brand | TOP Y Machinery |
| Model | TOPY-FM |
| packaging type | Cans, Bottles, Bags, Jar, Other |
| key selling points | Energy Saving |
| core components | Motor, PLC, Engine |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Product name | Paste filling machine |
| Filling product | Peanut butter, spice paste etc |
| FOB port | GUANGZHOU,SHENZHEN,FOSHAN |
| Terms of Payment | T/T |
| Download |  |

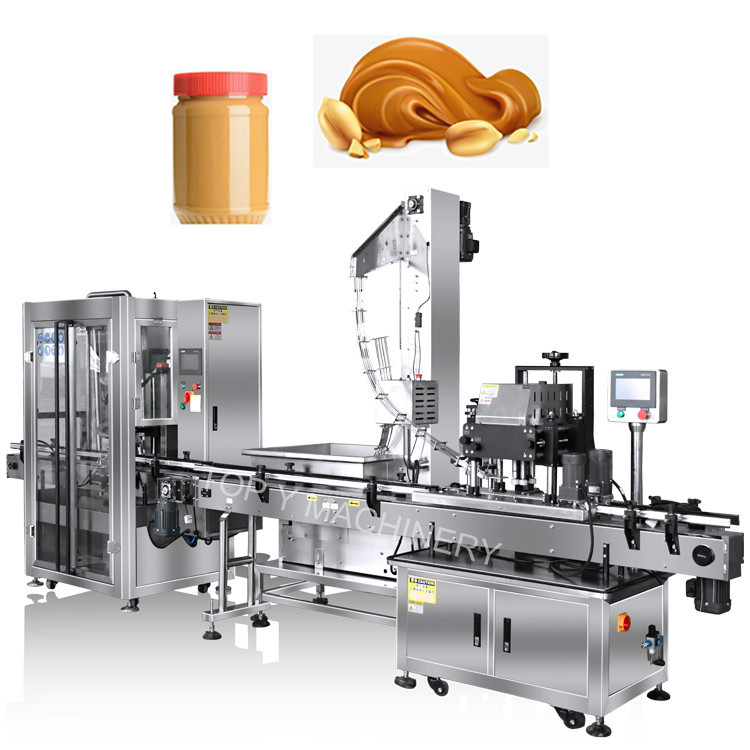

Fully Automatic Peanut Butter Filling Machine & Condiment Paste Filling System
Engineered for high-viscosity peanut butter, spice pastes and condiments — precise piston filling, food-grade stainless build, plug-and-play bottle, jar and can filling.
- ±0.5% Filling Accuracy
- 8 Piston Filling Heads
- PLC Touch-Screen Control
- Food-Grade 304 Stainless
A Peanut Butter Filling Machine That Understands Viscosity
Peanut butter, chilli paste and spice condiments are thick, sticky and often contain particles. Ordinary liquid fillers clog, drip and under-fill. TOPY-FM uses a positive-displacement piston filling system with anti-drip nozzles — designed from the ground up for high-viscosity paste filling into bottles, jars and cans.
(weight-based consistency)
(expandable capacity)
(adjustable)
(CIP-friendly)

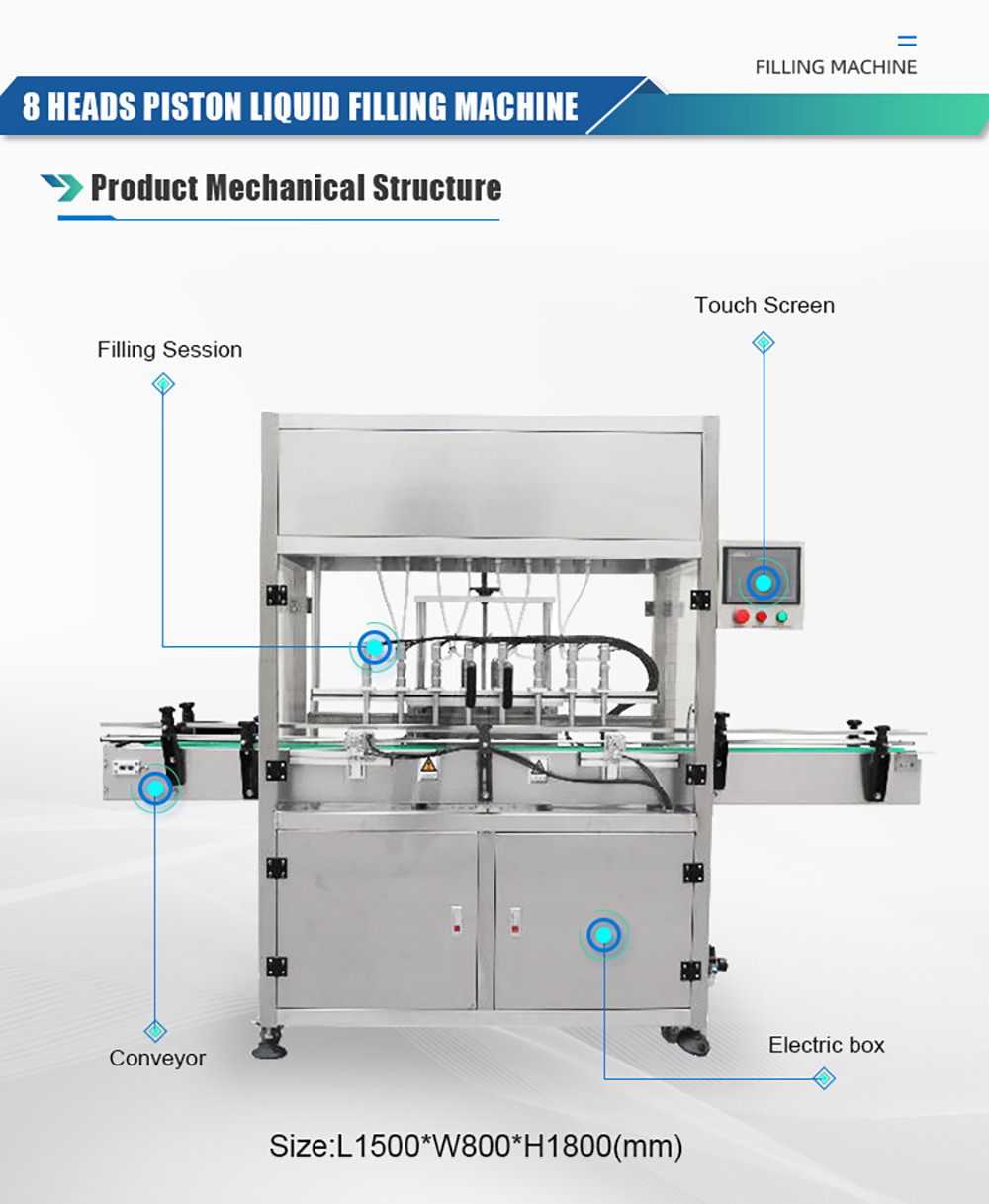

Key Components of a Reliable Condiment Paste Filling Machine
Every module of this automatic peanut butter filling machine is selected for reliability in sticky-product environments — from the metering system to the touch-screen control.

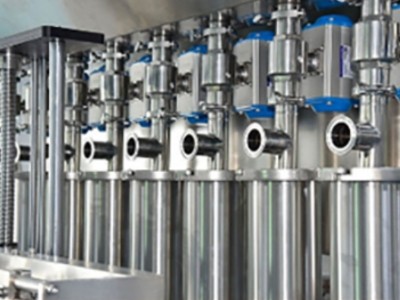

Piston Filling Heads
Multiple filling heads meter exact paste volume per cycle; head count matches your required output speed.

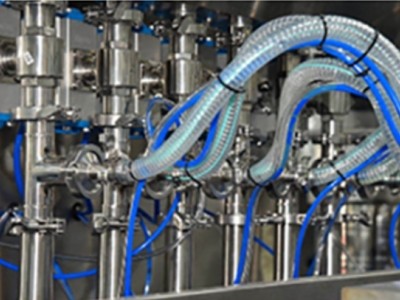

Anti-Drip Nozzles
Clean-cut nozzle mouths deliver clean filling and prevent dripping and smearing between containers.

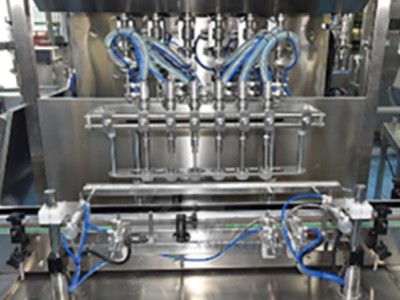

Food-Grade Build
Upscale stainless-steel structure, tidy filling session and easy-to-clean surfaces for food safety.

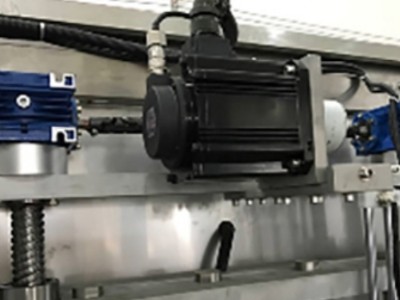

Brand Motor + PLC
Famous-brand motor and PLC touch-screen control deliver stable, repeatable filling performance.
Why Factories Choose TOPY-FM
- Handles High-Viscosity PastePiston metering keeps thick, sticky products flowing without clogging or shear damage.
- Weight-Consistent Accuracy±0.5% repeatability keeps every jar and can within spec — less giveaway, fewer complaints.
- Anti-Drip, Less WastePrecision nozzles eliminate dripping between cycles, keeping your filling area clean.
- Fast ChangeoverQuick-adjust filling range and easy tool-free cleaning support multi-SKU condiment production.
More Than a Filler — a Growth Engine for Your Line
- Higher Output, Fewer HandsAutomated filling replaces manual spoon-filling, cutting labor cost and human error.
- Less Product Giveaway±0.5% accuracy on expensive paste means measurable savings in every shift.
- OEM / ODM CustomizationBrand your machine with your logo and colors; we support private-label supply for distributors.
- One-Stop Line ExtensionAdd capping, sealing and labeling machines to build a complete paste filling production line.
Application: Peanut Butter & Condiment Paste Filling Materials
TOPY-FM is built around peanut butter and condiment pastes — the applications below extend the same paste filling machine to other thick, semi-solid products.
KetchupCondiment
MustardCondiment
HoneyViscous liquidCore applications: peanut butter, tahini, chilli paste, spice paste — the products above are extended filling applications.
Peanut Butter Filling Machine for Bottles, Jars & Cans
PET Plastic JarsBottles & squeeze jars
Glass JarsPasta sauce & jam jars
Metal CansTin & aluminum cansTOPY-FM Specifications
| Model | TOPY-FM |
|---|---|
| Filling Type | Piston (positive displacement) — high-viscosity paste |
| Filling Head Quantity | 8 heads (configurable) |
| Filling Range | 100 – 1000 ml per head (adjustable) |
| Capacity | Up to 2000 bottles/hour* |
| Filling Accuracy | ±0.5% |
| Power | 1.1 kW (filler) · AC220V 50/60Hz |
| Machine Dimension | 2000(L) × 1100(W) × 2200(H) mm* |
| Air Source | 0.6 – 0.8 MPa clean, stable air supply |
| Contact Parts | Food-grade 304 stainless steel |
| Control System | PLC + touch screen |
| Optional Upgrades | Capping machine · Sealing machine · Labeling machine |
Build a Complete Peanut Butter Paste Filling Production Line
TOPY-FM integrates seamlessly with upstream and downstream machines for end-to-end condiment filling automation.
Bottle Unscrambler
Piston Filling(TOPY-FM)
Screw Capping
Labeling
Bottle CollectingComplete Your Line with Add-On Machines
Capping MachineScrew-cap tightening for bottles & jars
Sealing MachineInduction / heat sealing for leak-proof packs
11 Years of Packaging & Filling Expertise
- Professional manufacturer focused on packaging & filling machines since 2011
- Machinery test report provided before shipment
- Video outgoing inspection available for every order
- OEM / ODM private-label support for distributors & brands
- Global export experience — trusted by food brands worldwide
Frequently Asked Questions
Can it fill peanut butter with peanut chunks?
Yes. The piston metering system handles semi-solid paste containing small particles. For coarse-chunk peanut butter, we recommend confirming particle size during inquiry so we can match the nozzle and piston configuration.
What is the maximum viscosity it can handle?
The positive-displacement piston design is ideal for high-viscosity products like peanut butter, tahini and chilli paste. Share your product's viscosity and we will confirm suitability and recommend the optimal configuration.
How long does cleaning and changeover take?
Contact parts are stainless steel with a simplified disassembly design, supporting fast cleaning and quick changeover between different paste products or container sizes.
What about warranty and after-sales support?
We provide testing before shipment, video outgoing inspection, and worldwide shipping with installation guidance and technical support. Contact us for warranty terms on your order.
Can I add capping and labeling later?
Absolutely. TOPY-FM is line-ready: add our capping, sealing and labeling machines anytime to build a full automatic paste filling production line.
Ready to Automate Your Peanut Butter Filling?
Tell us your product, container and target output in the inquiry form below — our engineers will recommend the right TOPY-FM configuration and respond with a tailored quotation. You can also download the catalog to explore the full filling machine range.
