Automatic Multi-Function Plastic Bags and Stand-up Pouches Snack Seasoning Powder Rotary Packing Machine
| Share | |
|---|---|
| Categories | Stand Up Pouch Rotary Packaging Machine |
| Trademark/Brand | TOP Y Machinery |
| Model | TOPY-RPM |
| Machine name | Rotary Packaging Machine |
| Bag width | 90-400mm |
| Bag length | 100-500mm |
| Bag type | doypack bag, stand up zipper pouch, gusset bag |
| Voltage | 110/220/240/380/415 V |
| Air consumption | 600L/min |
| Machine Material | SS#304 |
| Speed | 10-60bags/min |
| Function | Bag opening, filling, sealing, date coding |
| Brand | TOP Y MACHINERY |
| Warranty | 1year |
| FOB port | Shenzhen, Guangzhou, Shunde |
| Terms of Payment | L/C, D/A, D/P, Western Union, T/T, Paypal |
| Download |  |
| Update Time | Jan 18,2026 |
Detail Information

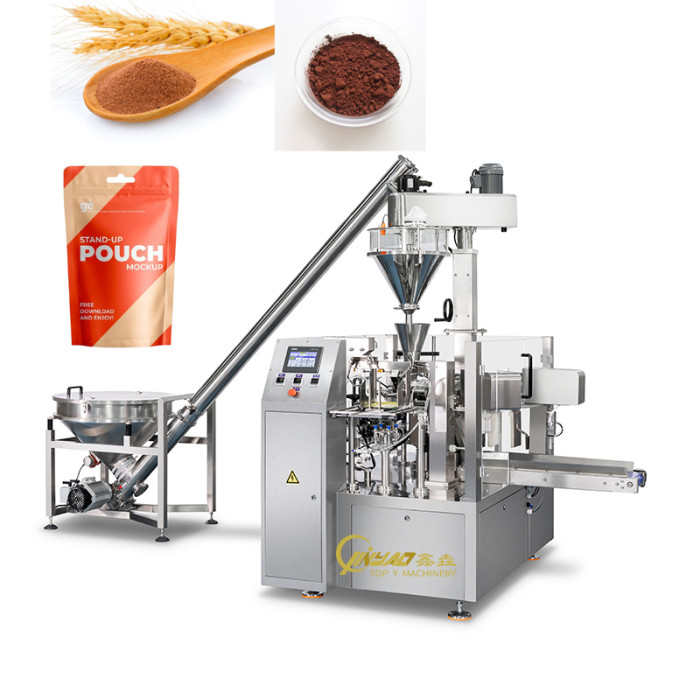

Automatic Multi-Function Plastic Bags and Stand-up Pouches Snack Seasoning Powder Rotary Packing Machine
Automatic rotary packing machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.
The flexibility of it allows us to customize the most suitable machine to meet your individual requirements!
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid/Granule Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
Features
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
5.Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7.It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
8.Use the plastic bearing, don’t need put on oil, less pollution.
9.Use no oil vacuum pump, avoid polluting the environment in the production.
10.The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when open the zipper
11.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
12.Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
13.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
14.The packing bag suits in extensive range, suit for multi-layer compound, single layer PE , PP and so on Preformed bag made by film and paper.
Specifications
Model No. | TOPY-RPM230A | TOPY-RPM260A | TOPY-RPM300A | TOPY-RPM400A |
Bag Width | 90-230mm | 130-260mm | 180-300mm | 260-400mm |
Bag Length | 100-350mm | 100-350mm | 150-450mm | 220-500mm |
Packing Speed | 20-60bags/min | 20-60bags/min | 20-40bags/min | 10-30bags/min |
Quantity of stations | 8 | |||
Quantity of lanes | 1 | |||
Air Consumption | about 600L/min, 5-6kgf/cm2 | |||
Bag Type | All types of heat sealable preformed side seal bags, block bottom bags, zip-lock bag, stand up pouch with or without spout, etc | |||
Power Supply | 3phase 380V 50HZ 6Kw | |||
Machine size | 2600*1800*1600mm(L*W*H), 2T | |||
