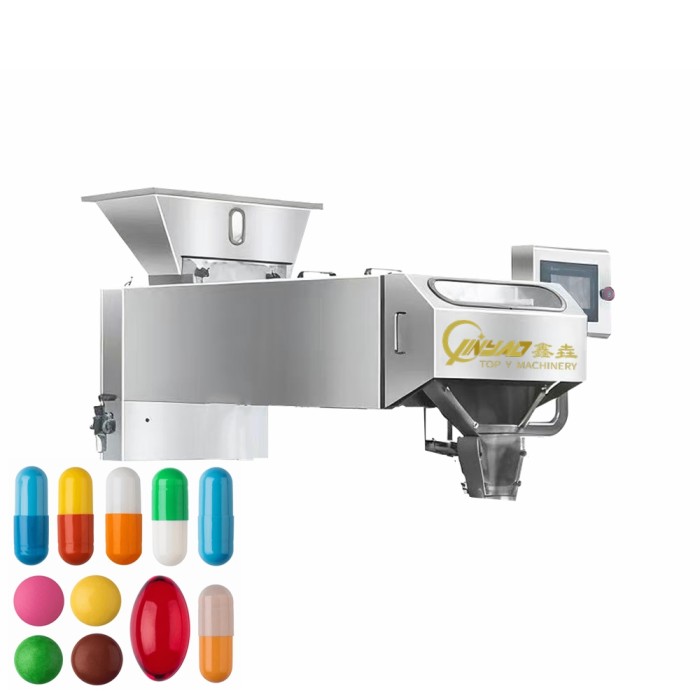

Top Y High Speed 8 Lanes 16 Lanes Candy Counter Pill Capsule Counting Machine
| Share | |
|---|---|
| Categories | Counting Machine |
| Trademark/Brand | TOP Y Machinery |
| Model | TOPY-VM |
| Capacity | 1-9999 |
| core components | Motor, PLC, Engine |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Product name | Counting machine |
| Filling products | capsule, tablet, pill, gummy candy, etc |
| FOB port | GUANGZHOU,SHENZHEN,FOSHAN |
| Terms of Payment | T/T |
| Download |  |
| Update Time | Jan 18,2026 |
Detail Information
Top Y High Speed 8 Lanes 16 Lanes Candy Counter Pill Capsule Counting Machine
Specification
| Machine Model | TOPY-AEC-8C 8 lanes counter | ||
| Filling objects | 00~5# capsules, soft capsules, Φ5.5~22 plain tablets, special-shaped tablets, sugar-coated tablets, Φ3~22 pill | ||
Production capacity | 20-80 bottles/min (related to bottle specifications, filling volume, and drug specifications) | ||
Bottle volume setting range | 1-9999 | ||
Power supply and power | Three phase 380V or single phase 220V50-60Hz(can be customized) | ||
Accuracy | >99.8% (better than industry standards) | ||
Weight | 150kg | ||
Machine Dimension | 1360*700*700mm | ||
Working Principle
Under the driving of the vibration, the capsules pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels.
When the capsule reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC.
When the set quantity is reached, the flashboard will close. At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted capsules fall into the bottle.
Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.
Advantages
Different Combination with Packing Machine/Filling Machine
