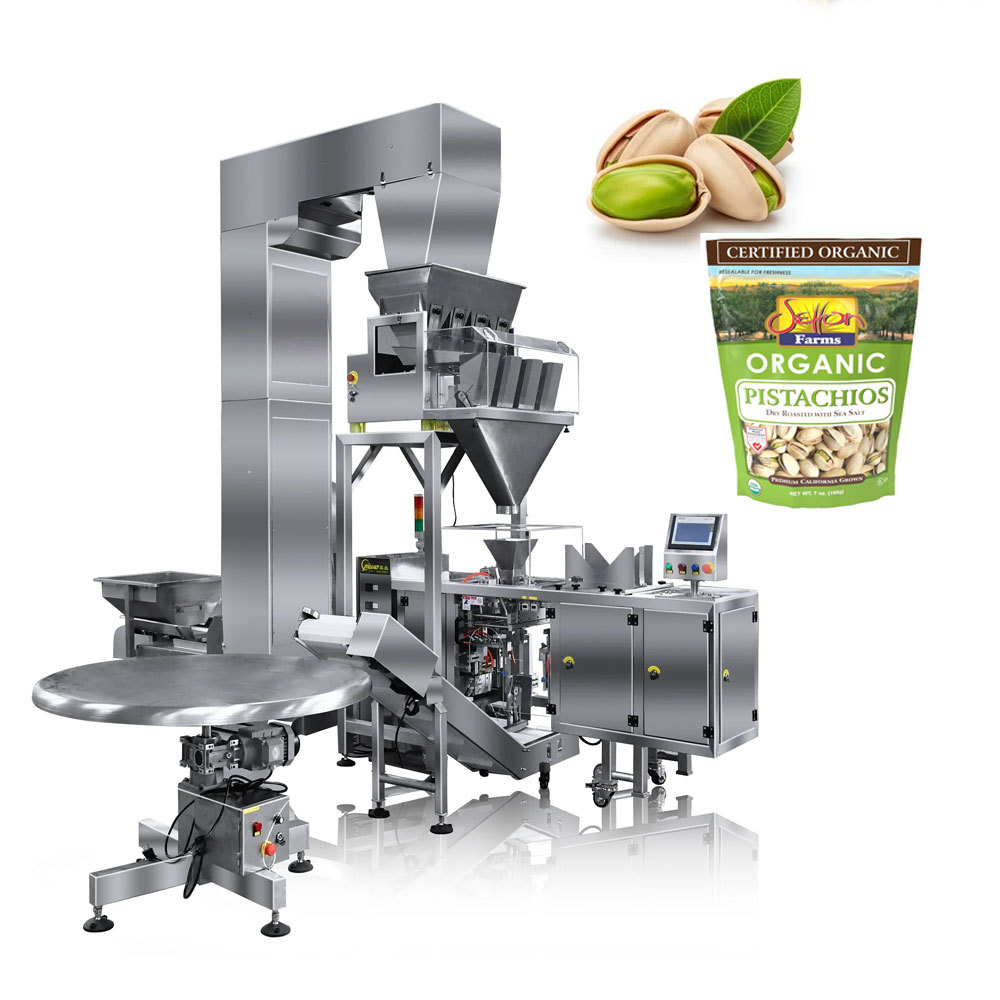

Pistachio Weighing And Sealing Packaging Machine
Pistachio Weighing And Sealing Packaging Machine

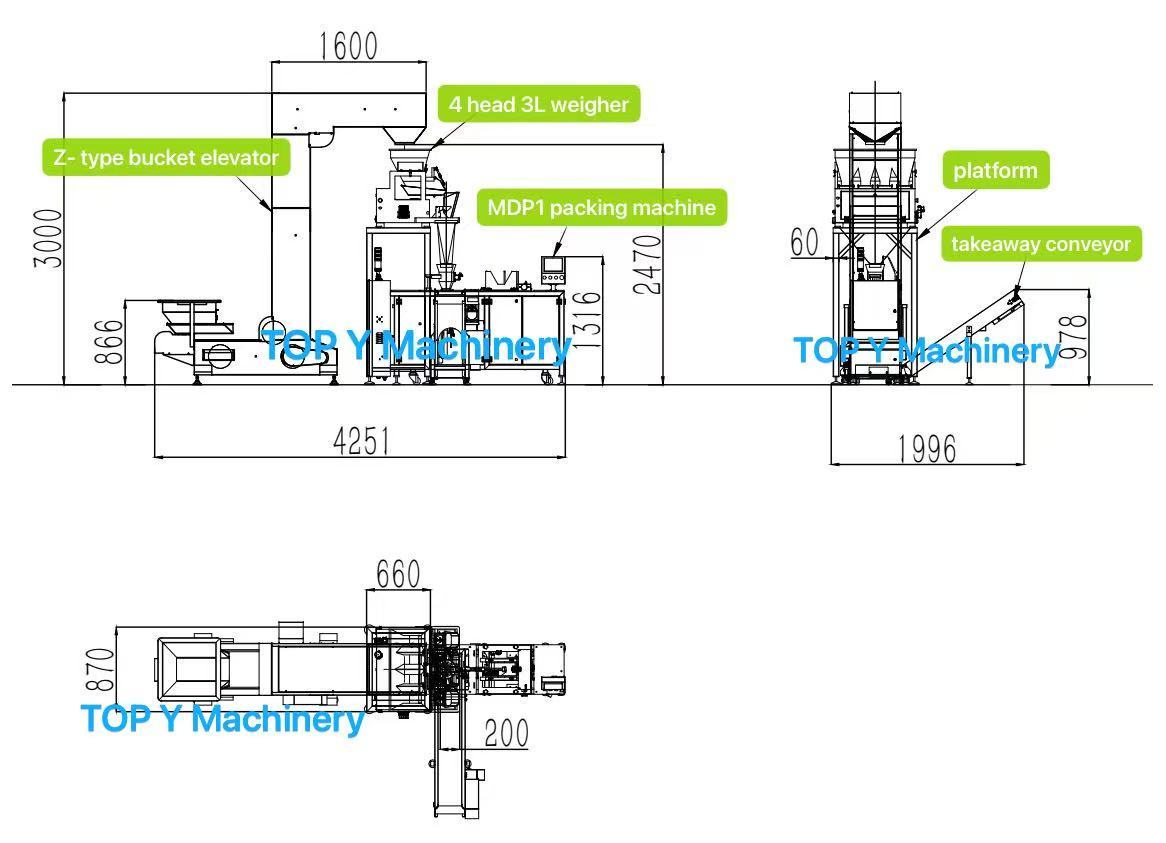

Final picture and drawing
Project name: Pistachio Weighing And Sealing Packaging Machine
Product: Pistachio
Bag Size: 133mm*220mm
Pack Weight: 50-700g
Packing Speed: 8–10 bags/min
Power Supply: 220V/50HZ, Single Phase
Customer Challenge
1.Order volume has increased, and there is an urgent need for machine assistance. Production and delivery times are tight.
2.Traditional manual packaging is slow and local labor costs are high.
Our Turnkey Packing Solution
We provided a fully automatic doypack packaging line including:
MDP Packing Machine
Pick up bag, filling, sealing automatically.
Z Type Bucket Elevator
To convey the products to the weighing machine

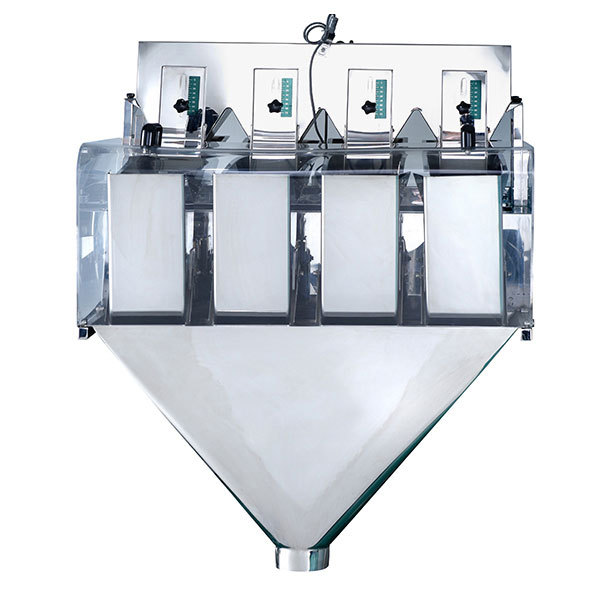

4 Heads Linear Weigher /Linear Scale
To weigh the small granular products
Take away conveyor
To take the sealed bag out.

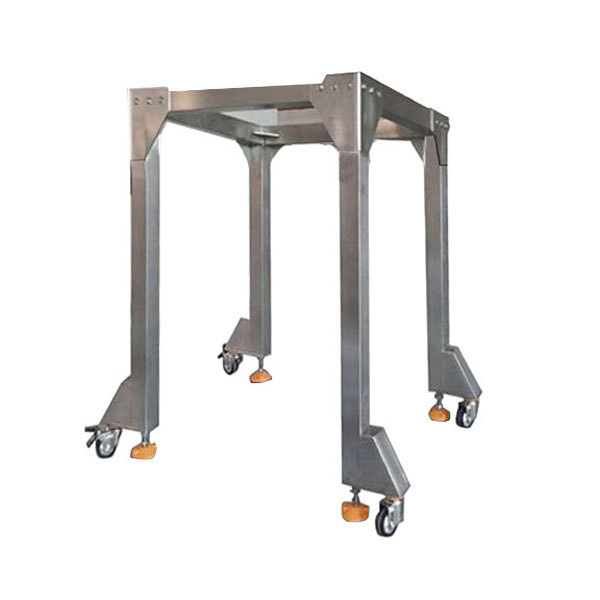

Support Platform
To support scale on the machine.
Collection table
To collect the sealed bag.
Key Points of the Packing Solution
1. Bag Magazine
we use handle rotates to adjust the bag width and length,It greatly saves the time of bag changeover and improves production efficiency
2. Automatic Zipper Opener
Precisely opens the zipper before filling, guaranteeing smooth powder filling into the bag.
3. Food grade PP buckets
In the Z-type bucket conveyor, we transport materials using these buckets, easy to disassemble.
4. Pneumatic Hopper Shaker
Add Air Valves to Shake Hopper to Get Products Free Flowing to the OpenBags.
5. Vacuum Pump Bag Opening
We use vacuum pump to open the suction cups,that can open the bags stably and continuously because of the stable air pressure.
6. Bag Tapper Device
Taps the bag during filling so the powder settles evenly, improving filling accuracy and sealing quality.
Result
To expedite delivery, we recommended a standard granule packaging machine to our client. We have extensive experience in this area. We successfully completed the design within 3 days and production and testing within 25 days, then shipped the product. This significantly reduced unnecessary and high labor costs for our client, greatly improving efficiency in packaging their pistachios.
