Gummy Candy and Freeze Dried Candy Packaging Line
Gummy Candy and Freeze Dried Candy Packaging Line
Final picture and drawing
Project name: Gummy Candy and Freeze Dried Candy Packaging Line
Product: soft gummy candy and fragile freeze dried candy
Bag Size: 148*200mm / 167*230mm
Pack Weight: 54-60g
Packing Speed: 15-20 bags/min
Power Supply: 230V, single phase, 50Hz
Customer Challenge
A. One machine needs to be compatible with 3 bag sizes.
B. The specifications of different products vary greatly. The biggest freeze dried candy is up to 70*70mm.
C. The hardnesses of different products vary greatly. The gummy candies are soft, while the freeze dried candies are hard and crispy.
Our Turnkey Packing Solution
We provided a fully automatic horizontal doypack packaging line including:

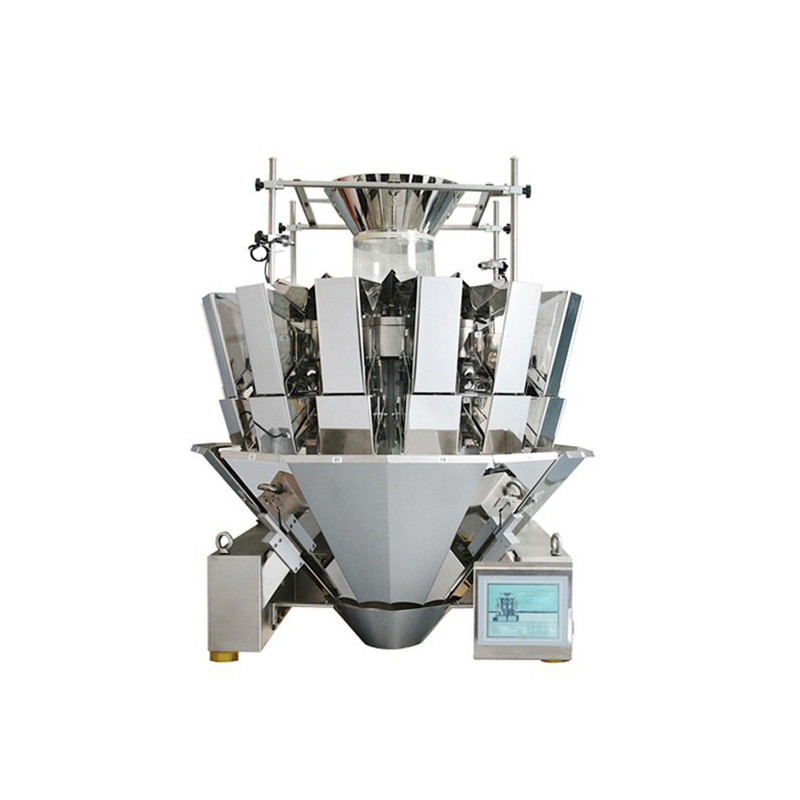

Mutilhead weigher
For granule products weighing
Contain 2 sets of linear feeder pans to fit different products
Teflon coating+dimpled plate for anti-sticking
Z-type bucket elevator
To convey the product up to the weigher
Horizontal packing machine
Pick up bag, filling, sealing automatically.

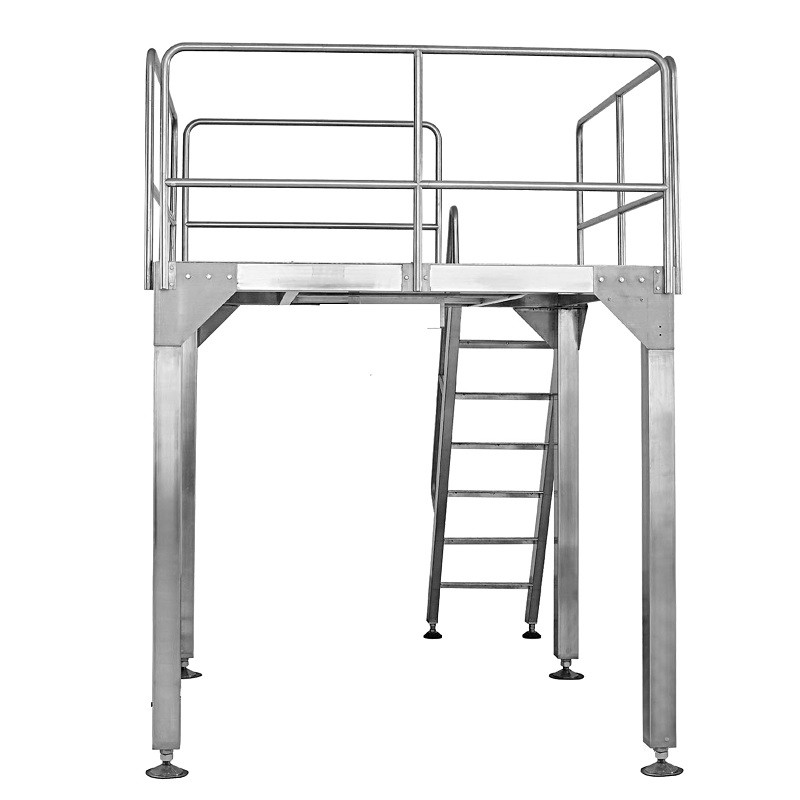

Platform with guardrail and ladder
To support the weigher above the packing machine
Take away conveyor
To take the finished bag out of the packing machine
Collection table
To collect the finished bag.
Key Points of the Packing Solution
1. Pneumatic Hopper Shaker
Installed on the filling hopper to prevent powder from sticking to the wall, ensuring smooth and stable feeding.

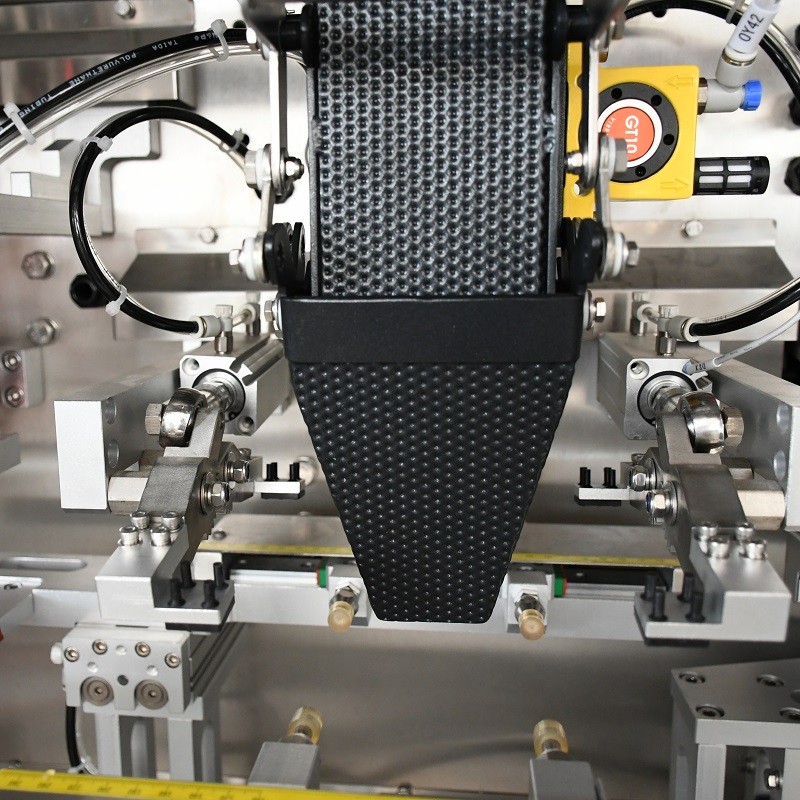

2. Automatic Zipper Opener
Precisely opens the zipper before filling, guaranteeing smooth powder filling into the bag.
3. Teflon coating+dimpled plate hopper
For anti-sticking

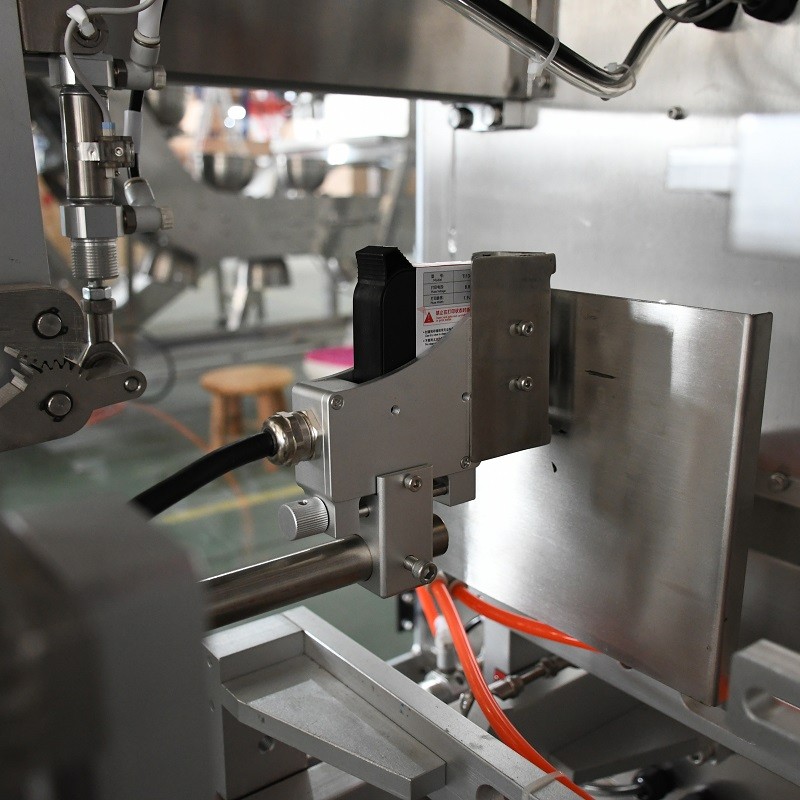

4. Inkjet Printer
Prints production date and batch code
With a 10inch touch screen
5. Bag Tapper Device
Taps the bag during filling so the products settle evenly, improving sealing quality.

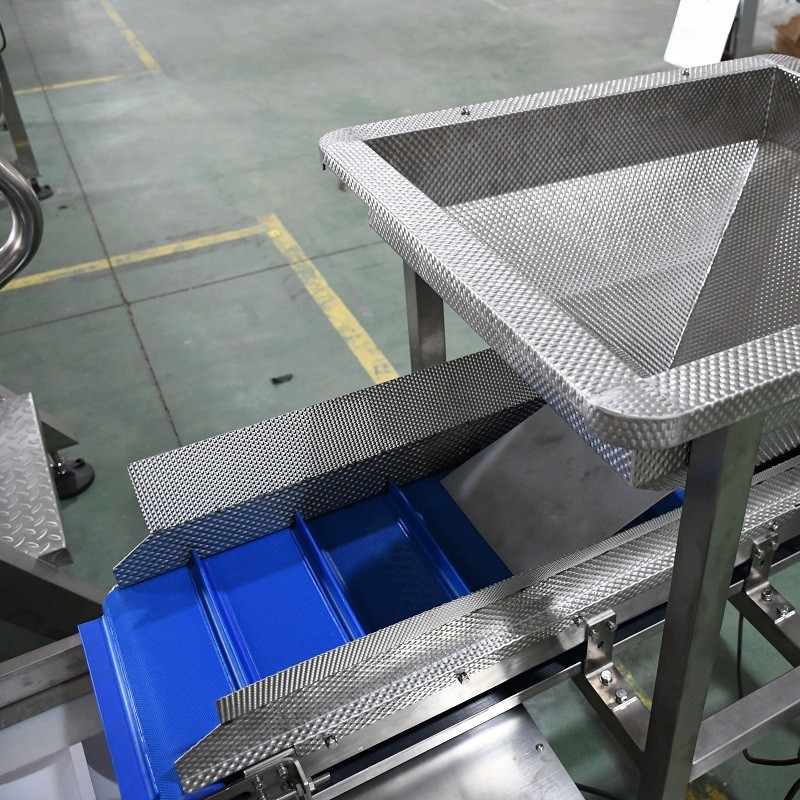

6. Customized Belt feeder
To be compatible with soft and hard products
Result
Our solution overcame several key challenges:
1. Servo-driven System: The horizontal packing machine is driven by several servo motors, allowing for flexible adjustments and compatibility with various bag sizes.
2. Multi-head Weighing System: Equipped with interchangeable vibrating trays, the multi-head scale can handle various products in different sizes.
3. Customized Belt Feeder: The machine uses a tailored belt feeder that is compatible with candies of varying hardness, ensuring smooth operation for diverse products.
