Coffee Beans Packaging Machine With Electric Feeding Device
Coffee Beans Packaging Machine With Electric Feeding Device
Final picture and drawing
Project name: Coffee Beans Packaging Machine With Electric Feeding Device
Product: Coffee Beans
Bag Size: 500g（250*125mm)/1000g（345*140mm）
Pack Weight: 500g1000g
Packing Speed: 8–10 bags/min
Power Supply: 220V/50HZ, Single Phase
Customer Challenge
1.The customer required the total height of the machine to be below 3 meters.
2.The customer's materials are difficult to move, and they hope to reduce manual handling.
Our Turnkey Packing Solution
We provided a fully automatic doypack packaging line including:

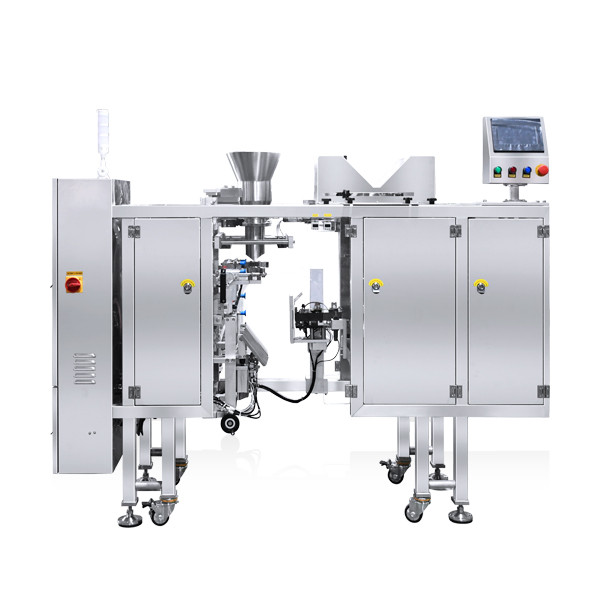

MDP Packing Machine
Pick up bag, filling, sealing automatically.

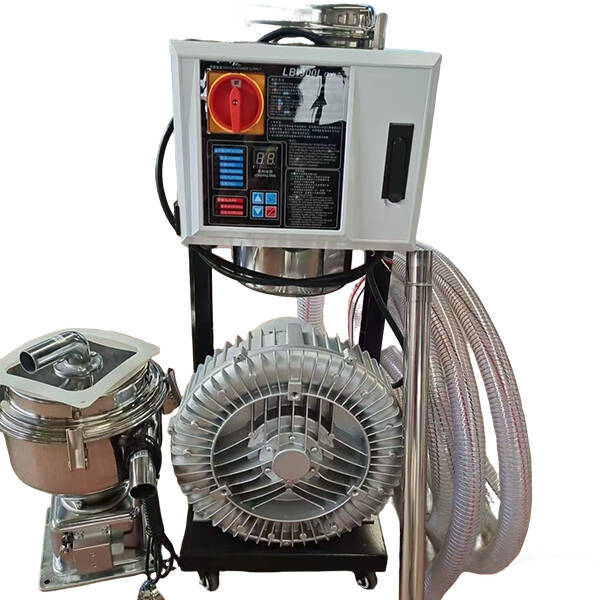

Electric vacuum feeding machine
Coffee beans are sucked out of the coffee bag and conveyed to the weighing equipment.

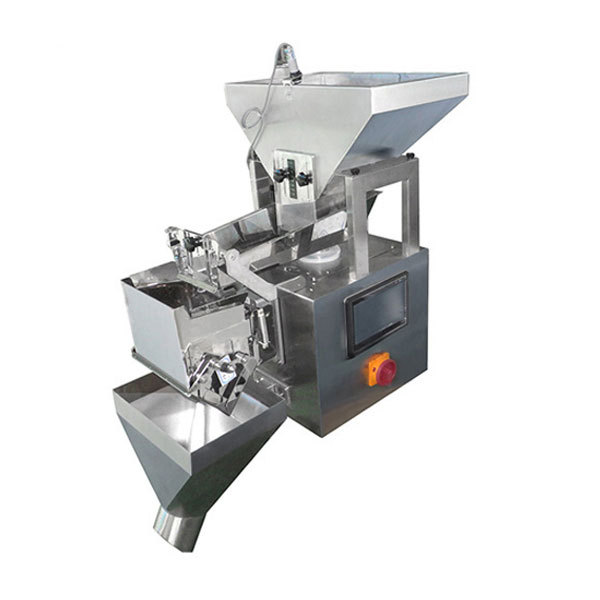

Single Head Linear Weigher-4.5L
To weigh the small granular products
Key Points of the Packing Solution

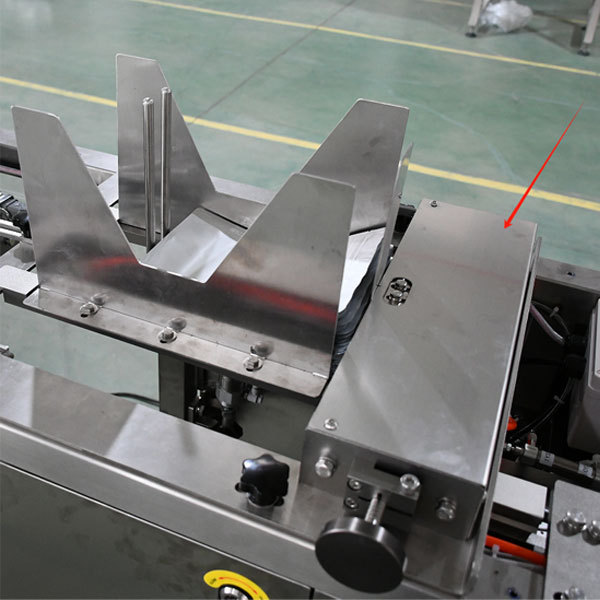

1. Bag Magazine
we use handle rotates to adjust the bag width and length,It greatly saves the time of bag changeover and improves production efficiency
2. Automatic Zipper Opener
Precisely opens the zipper before filling, guaranteeing smooth product filling into the bag.
3. Date printer
Hot ribbon date printer, max 2 lines, 11 leters per line.

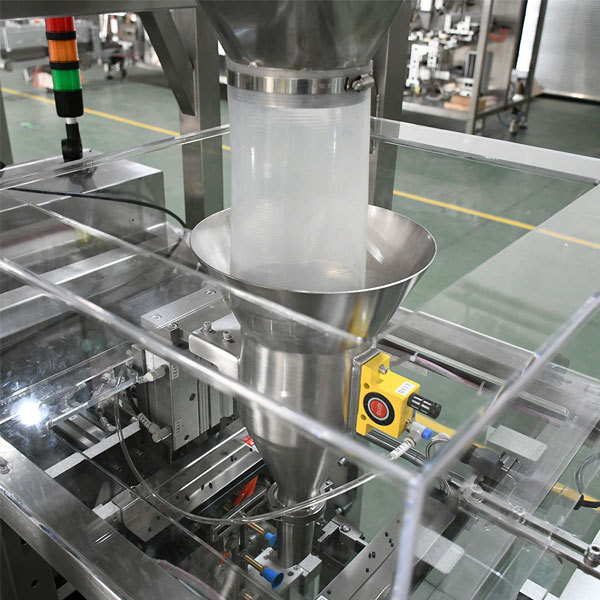

4. Pneumatic Hopper Shaker
Add Air Valves to Shake Hopper to Get Products Free Flowing to the OpenBags.

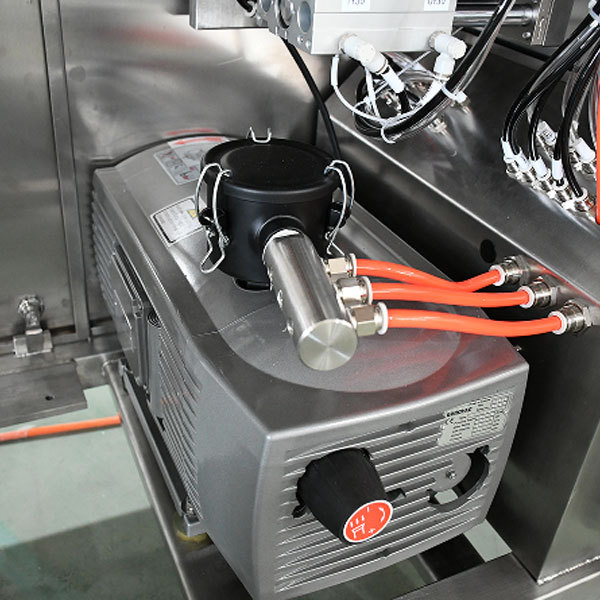

5. Vacuum Pump Bag Opening
We use vacuum pump to open the suction cups,that can open the bags stably and continuously because of the stable air pressure.

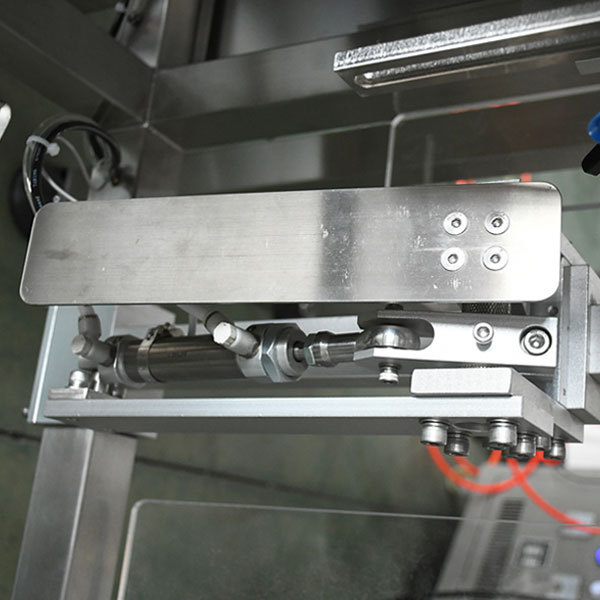

6. Bag Tapper Device
Taps the bag during filling so the powder settles evenly, improving filling accuracy and sealing quality.
Result
We have a professional design team. We can complete the system drawings to meet the client's requirements in about three days. This perfectly solves the client's factory height restriction of 3 meters. Furthermore, we use a new vacuum feeding method, saving on the overall machine footprint. The suction method simply involves inserting a transparent tube into the client's own coffee bean storage container; no manual replenishment is required.
