Pistachio Packaging Machine: 50g to 5kg Guide
The Short Answer: Match the Pistachio Packaging Machine to the Bag Size
Short answer: the right pistachio packaging machine depends on the bag size you sell — 50–250 g retail pouches are best handled by a premade-pouch machine (like the TOPY-MDP1) fed by a TOPY-VM single-head or two-head weigher at ±1–2 g accuracy and 10–30 bags/min; 250 g–1 kg bags move fastest on a VFFS line with a multihead weigher at ±0.5 g and 20–45 bags/min; 1–5 kg bulk runs need a VFFS or rotary premade-pouch machine with a larger weigher at ±0.1–0.3% accuracy. Because whole pistachios are irregular, weight-based filling beats every volumetric method — which is why TOP Y MACHINERY builds multi-spec packaging lines that integrate TOPY-VM weighers directly into the filler, covering the full 50 g to 5 kg range on one supplier.
This guide maps machine type, fill accuracy, and speed to each bag size, compares the filling options available for pistachios, and shows how a weigher-plus-packager line is built. Whether you pack snack-size 50 g pouches, 250 g retail bags, or 5 kg bulk sacks, the spec table below gives you a starting point that holds up in practice.
Pistachio Packaging Machine Specs by Bag Size (50 g – 5 kg)
Speed and accuracy scale with bag size — never buy the biggest advertised machine, buy the one matched to your pack weight. The table below summarizes realistic 2026 specs for each size range, based on TOP Y MACHINERY's multi-spec lines: TOPY-MDP1 premade-pouch machines, TOPY-VM linear and multihead weighers, VFFS roll-film machines, and rotary (RPM) premade-pouch machines.
| Bag Size | Recommended Machine | Fill Accuracy | Speed (bags/min) | Typical Format |
|---|---|---|---|---|
| 50 g snack pack | MDP1 premade pouch + TOPY-VM single-head weigher | ±1–2 g | 10–30 | Doypack / quad-seal pouch |
| 100–250 g retail | MDP1 premade pouch + TOPY-VM two-head weigher, or VFFS + multihead weigher | ±0.5–1 g | 15–35 | Stand-up / zipper pouch |
| 250–500 g | VFFS + 10-head multihead weigher | ±0.5–1 g | 20–45 | Pillow / gusset bag from roll film |
| 500 g–1 kg | VFFS or RPM rotary premade pouch + multihead weigher | ±1–2 g | 15–35 | Gusset / premade pouch |
| 1 kg | RPM rotary premade pouch or VFFS + 14-head weigher | ±2–3 g | 10–20 | Premade pouch / gusset bag |
| 2–5 kg bulk | VFFS or RPM with large-capacity weigher | ±0.1–0.3% of fill | 5–12 | Heavy-duty gusset bag / sack |
The accuracy story behind the table: at 50 g a ±2 g error is 4% of the bag — enough to trigger giveaway fines or underweight complaints, so single-head weighers with ±1–2 g resolution are the standard. At 1–5 kg, percentage-based accuracy (±0.1–0.3%) matters more than grams, and a 14-head multihead or large linear weigher keeps the error well below label tolerance. Speed drops as weight rises because each cycle moves more product — a 5 kg sack simply takes longer to fill than a 50 g pouch, and that is expected, not a fault.
Filling Options Compared: Weigher, Auger, Volumetric
Whole pistachios are irregular, low-density, and valuable — that combination makes weighing the only accurate filling method. Volumetric cups and augers drift as nut size, moisture, and density vary between harvests. Here is how the main filling options compare for pistachio packaging:
| Filler Type | Best For | Accuracy | Speed | Notes |
|---|---|---|---|---|
| Single-head linear weigher (TOPY-VM) | 50–500 g whole and in-shell pistachios | ±1–2 g | 10–30 bags/min | Lowest-cost accurate option; ideal start for snack and retail packs |
| Two-head weigher (TOPY-VM pistachio model) | 100–500 g retail pouches, high throughput per dollar | ±0.5–1 g | 20–35 bags/min | Purpose-built for pistachios; balances two weigh buckets for faster cycles |
| Multihead weigher (TOPY-VM 10/14-head) | 250 g–1 kg, high-speed retail and wholesale lines | ±0.5 g | 30–60 weighments/min | Best accuracy and speed; feeds VFFS and RPM machines |
| Auger / screw filler | Pistachio meal, powder, or crushed product only | ±0.5–1% | 15–40 bags/min | Cannot meter whole nuts reliably — use only for processed pistachio products |
| Volumetric cup filler | Cheap, low-accuracy fills where weight tolerance is loose | ±5–10% | 30–60 bags/min | Not recommended for retail pistachios: density drift causes giveaway or underweight |
Rule of thumb: if your pistachio product is whole or in-shell, choose a weighing filler — single-head to start, two-head or multihead as speed targets rise. If you also pack pistachio meal or powder, add an auger option to the same line rather than replacing the weigher. TOP Y MACHINERY configures every line so the weigher bolts onto the packager as one integrated unit, so accuracy never depends on a separate, misaligned dosing step.
Building a Complete Pistachio Line: Weigher + Packager Integration
A pistachio line is two machines that must work as one: the weigher meters the nuts, the packager forms or positions the bag and seals it. TOP Y MACHINERY covers the full 50 g to 5 kg range with multi-spec machines and direct weigher integration:
- 50–500 g premade pouches: the TOPY-MDP1 premade-pouch machine positions doypack, zipper, and stand-up pouches while a TOPY-VM single-head or two-head weigher drops the exact weight — 10–35 bags/min, one operator.
- 250 g–1 kg roll-film bags: a VFFS machine forms pillow or gusset bags from roll film and pairs with a 10- or 14-head multihead weigher for ±0.5 g at 20–45 bags/min.
- 1–5 kg bulk premade bags: a rotary (RPM) premade-pouch machine opens, fills, and seals large pouches with a large-capacity weigher at ±0.1–0.3% — the standard for wholesale and food-service packs.
- One integration point: because the weigher and packager are supplied as a matched set, changeover between bag sizes takes minutes with recipe presets, and accuracy stays within spec from day one.
Two machines anchor most pistachio operations:

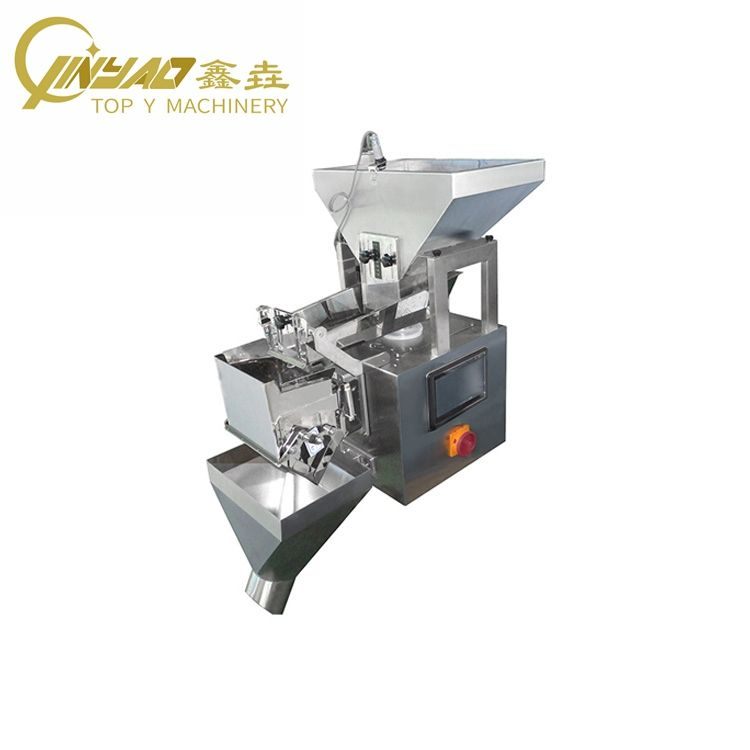

TOPY-VM Single-Head Linear Weigher
High-accuracy modular scale for whole nuts: ±1–2 g on 50–500 g fills, feeds MDP1 and VFFS packagers directly, and scales up to two-head and multihead configurations as volume grows.
View product details →

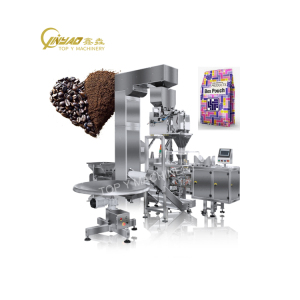

TOPY-MDP1 Premade Pouch Packager
Compact premade-pouch machine for pistachios and other granule nuts: positions doypack, zipper, and stand-up pouches at 10–30 bags/min, integrates a TOPY-VM weigher, and occupies minimal floor space.
View product details →Frequently Asked Questions
What is the most accurate way to weigh pistachios into bags?
A weighing filler — single-head linear, two-head, or multihead weigher — is the only method accurate enough for whole pistachios. TOPY-VM weighers hold ±1–2 g on 50–500 g retail fills and ±0.1–0.3% on bulk fills. Volumetric cups and augers drift with nut size and density and should only be used for processed pistachio meal or powder.
How fast can a pistachio packaging machine fill 250 g bags?
Realistic speeds are 15–35 bags/min for a premade-pouch machine with a two-head weigher, and 20–45 bags/min for a VFFS line with a 10-head multihead weigher. At 30 bags/min, one operator packs about 1,800 × 250 g bags in a shift — well above most retail and wholesale targets.
Can one machine package both 50 g snack packs and 5 kg bulk bags?
Not one filler, but one supplier: a single-head or two-head weigher plus MDP1 premade-pouch machine covers 50–500 g, while 1–5 kg bulk requires a VFFS or rotary premade-pouch machine with a larger weigher. TOP Y MACHINERY supplies the whole range as matched sets with recipe presets, so switching bag sizes takes minutes and you keep one service partner.
Do I need a multihead weigher for pistachios?
Only if your line speed or accuracy target demands it. At 10–30 bags/min with ±1–2 g tolerance, a single-head or two-head weigher is enough and costs less. A multihead weigher pays off above ~35 bags/min or when you must hold ±0.5 g on premium retail packs — it is the upgrade path, not the starting point.
Can the same machine handle in-shell and shelled pistachios?
Yes, with the right weigher buckets. In-shell pistachios are bulkier, so larger bucket capacity keeps cycle time short; shelled kernels are denser and pack more per gram. Weigh-based filling handles both — you simply store a second bucket or recipe for each product, which is standard on TOPY-VM configurations.
Why is TOP Y MACHINERY a good fit for pistachio packaging?
TOP Y MACHINERY specializes in multi-spec food packaging lines with integrated TOPY-VM weighers, covering the full 50 g to 5 kg range on one supplier: premade-pouch, VFFS, and rotary machines with 20+ years of experience, 2-year warranty, installation guidance, and 10–15 day delivery. You get one matched line, one contact, and specs that match real pistachio packing conditions.
Pack Your Pistachios Right — From 50 g Pouches to 5 kg Sacks
TOP Y MACHINERY builds multi-spec pistachio packaging lines that integrate TOPY-VM weighers with MDP1 premade-pouch, VFFS, and rotary packagers for the full 50 g–5 kg range. Every line is configured to your bag size, fill weight, and speed target, with ±0.5–2 g accuracy on retail packs, ±0.1–0.3% on bulk, and 10–15 day delivery.
Ready to size your pistachio line? Request a Pistachio Packaging Quotation or compare the full food packaging machine range for premade-pouch, VFFS, and weigher options.
