Liquid Food Packaging Machine: Complete Guide to Pouches, Spout Bags and Doypacks
What Is a Liquid Food Packaging Machine?
A liquid food packaging machine is a specialized industrial system designed to fill and seal liquid food products into flexible packaging formats such as stand-up pouches, spout pouches, doypacks, and three-side-seal bags. These machines handle products ranging from water-thin liquids (juices, sauces, oils) to high-viscosity pastes (ketchup, yogurt, honey) with exceptional precision.
TOP Y MACHINERY, with over 20 years of expertise in the packaging industry, delivers multi-line liquid filling and sealing solutions that achieve fill accuracy of ±0.5% and speeds of 20–60 bags per minute, depending on product type and packaging format. All machines are CE and FDA certified, with full customization available for your specific production requirements.

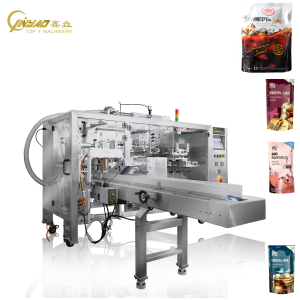

Automatic Liquid Pouch Filling Machine
PID: 18545371 — Precision liquid pouch filling with ±0.5% accuracy. Ideal for sauces, juices, and dairy products.
Learn More
Spout Pouch Filling & Sealing Machine
PID: 18545431 — High-speed spout pouch filling machine for liquids, with automatic spout insertion and sealing.
Learn MoreTypes of Liquid Food Packaging: Pouches, Spout Bags & Doypacks
Understanding the differences between packaging formats is essential for choosing the right machine. Here is a breakdown of the most common liquid food packaging types:
Stand-Up Pouches (Doypacks)
The most popular format for liquid foods. These pouches stand upright on shelves, offering excellent shelf presence. Suitable for sauces, soups, purees, and beverages. Available with or without resealable zippers.
Spout Pouches
Pouches with a built-in spout and cap, ideal for drinks, liquid baby food, yogurt, and oil. The spout allows easy pouring and resealing. Common in on-the-go liquid packaging.
Three-Side Seal & Pillow Pouches
Flat pouches sealed on three sides. Used for single-serve liquid portions such as condiment packets, sauce samples, and travel-sized liquids. Cost-effective and easy to produce.
Comparison of Liquid Filling Methods: Piston Pump vs. Gravity Filler
Choosing the right filling method is critical for product quality and production efficiency. Here is a detailed comparison of the two most common liquid filling technologies used in pouch packaging machines:
| Feature | Piston Pump Filler | Gravity Filler |
|---|---|---|
| Best For | High-viscosity liquids (pastes, creams, honey, ketchup) | Low-viscosity liquids (water, juice, milk, oil) |
| Fill Accuracy | ±0.5% (highest precision) | ±1–2% (good for free-flowing liquids) |
| Speed Range | 20–45 bags/min | 30–60 bags/min |
| Product Handling | Gentle, no foaming, ideal for shear-sensitive products | Simple, but may cause foaming with some liquids |
| Maintenance | Moderate (moving parts in pump) | Low (fewer moving parts) |
| Cost | Higher initial investment | Lower initial investment |
Bottom Line: For thick liquids and pastes, piston pump fillers provide superior accuracy and product integrity. For thin, free-flowing liquids, gravity fillers offer excellent speed at a lower cost. Many TOP Y MACHINERY systems support both filling methods in a single machine for maximum flexibility.
Why Choose TOP Y MACHINERY for Your Liquid Packaging Line?
20+ Years of Expertise
Since 2003, TOP Y has delivered thousands of packaging machines to clients across 80+ countries. Our engineering team understands every aspect of liquid food packaging.
Multi-Line Solutions
From single pouch filling machines to complete turnkey production lines, we design systems that scale with your business. Fully customizable to your product, bag size, and speed requirements.
CE & FDA Certified
All our machines meet international quality and safety standards. Stainless steel construction, food-grade materials, and rigorous testing ensure reliable, hygienic operation.
Full Customization
Custom bag sizes, filling volumes (10ml–5000ml), multi-head filling, gas flushing, coding, and more. We tailor every machine to your specific production needs.
Key Features of a Quality Liquid Pouch Packing Machine
- Precision Servo-Driven Filling System — Ensures consistent fill volumes with ±0.5% accuracy across all operating speeds.
- Automatic Film Feeding & Registration — Photoelectric sensor tracking for precise bag cutting and print registration.
- Multi-Lane Configuration Available — Increase output with 2, 4, or 6 lanes running simultaneously.
- Touchscreen PLC Control — User-friendly HMI for easy parameter adjustment, recipe storage, and production monitoring.
- Inert Gas Flushing (Optional) — Extend shelf life by reducing oxygen in the packaging headspace.
- Date Coding & Print Integration — Hot stamp or inkjet coding for batch numbers, expiration dates, and barcodes.
Applications: Which Liquid Foods Can Be Packaged?
Food Industry
Sauces, ketchup, mustard, mayonnaise, cooking oil, vinegar, soy sauce, soup, broth, honey, syrup, jam
Beverage Industry
Juice, nectar, milk, yogurt drink, energy drink, coconut water, flavored water, tea, coffee
Personal Care & Pharma
Shampoo, lotion, hand soap, liquid detergent, mouthwash, saline solution, liquid medicine
Frequently Asked Questions About Liquid Food Packaging Machines
Q: What is the difference between a piston pump and a gravity filler?
A piston pump uses a reciprocating piston to draw and dispense a precise volume of liquid, making it ideal for thick, viscous products like ketchup or honey with accuracy of ±0.5%. A gravity filler relies on gravity to fill containers and is best for thin, free-flowing liquids like water or juice, achieving speeds up to 60 bags/min with slightly lower precision (±1–2%).
Q: What bag sizes can these machines handle?
TOP Y liquid pouch packing machines can handle bag widths from 60mm to 400mm and bag lengths from 60mm to 600mm, with filling volumes ranging from 10ml to 5000ml per pouch. Custom sizes are available upon request.
Q: Are these machines suitable for hot-fill liquids?
Yes. Many of our machines support hot-fill applications up to 95°C (203°F), making them suitable for pasteurized products, hot sauces, and cooked soups. Heat-resistant sealing components ensure consistent seal quality even at elevated temperatures.
Q: How do I maintain the machine for long-term reliability?
Daily cleaning of the filling nozzles and sealing jaws, weekly lubrication of moving parts, and monthly inspection of seals and gaskets will ensure reliable operation. All TOP Y machines come with a detailed maintenance manual and video tutorials.
Q: What certifications do your machines have?
All TOP Y MACHINERY liquid packaging machines are CE certified and made with FDA-approved food-grade materials. We also offer ATEX-certified options for explosive environments upon request.
