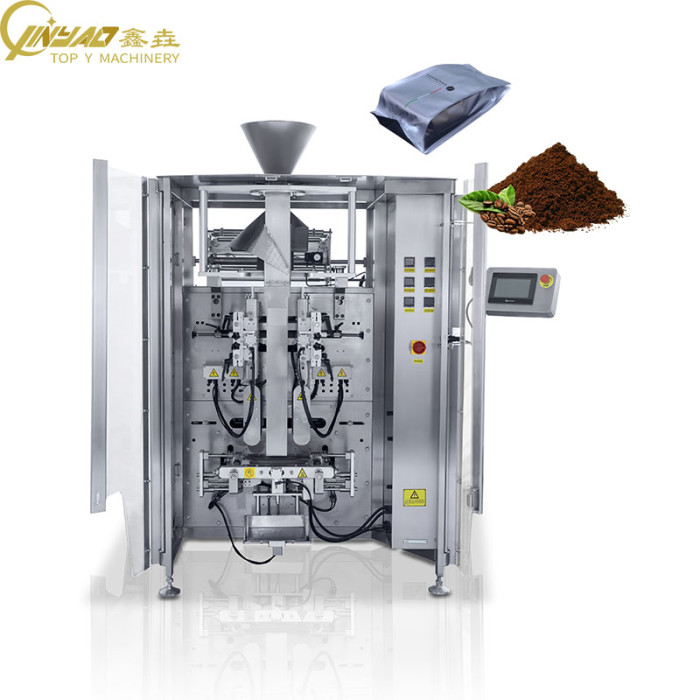

Quad Brick Bottom Bag Beans Granule Powder Vertical Forming Filling Sealing Packing Machine
| Share | |
|---|---|
| Categories | Quad Seal Bag Packing Machine |
| Trademark/Brand | TOP Y Machinery |
| Model | VFFS |
| Name | Form Fill Seal Packing Machine |
| function | FILLING, Sealing, Packing |
| core components | Motor, PLC, Gear, Bearing, Temperature Control Mod |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Machine Material | SS#304 or Carbon/Mild Steel |
| Film Changeover | Simple and fast bag sizes with one set of former |
| Software Operation | Program storage and retrieval function |
| Bags or Products Changeover | parameters setting on the touch screen |
| Controller System | PLC and touch screen with simple manu-based |
| Machine Material | SS#304 or Carbon/Mild Steel |
| brand name | TOP Y MACHINERY |
| FOB port | FOSHAN,GUANGZHOU,SHENZHEN |
| Terms of Payment | L/C, Western Union |
| Download |  |
| Update Time | Jan 18,2026 |
Detail Information
Quad Brick Bottom Bag Beans Granule Powder Vertical Forming Filling Sealing Packing Machine
Packaging Machine Manufacturer Support OEM&ODM Service
It is suitable for packing a range of granular, powder and liquid products, and particularly suited to products that require high standards of package: aesthetically perfect, without any wrinkles, the flush seams are highly resistant and all four sides can be printed on.
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
* Use famous brand electric and pneumatic components, stable and long life circle.
* Use superior mechanical components, reduce the wear out loss.
* Easy to install film, auto correcting the excursion of the film.
* Apply advanced operating system, easy to use.
To be used on Top Y High quality machine, it makes your packing work easily and efficiently.
| The Specification Of Quad Seal Bag VFFS Packing Machine | |||
| Model No. | TOPY-QSM420 | TOPY-QSM520 | TOPY-QSM620 |
| Bag Type | Stand up Quad-Seal Bag | Stand up Quad-Seal Bag | Stand up Quad-Seal Bag |
| Film Width | Max 420mm | Max 520mm | Max 620mm |
Bag Length | 80-300mm | 80-350mm | 80-400mm |
Bag Width | 150-150mm | 50-200mm | 70-250mm |
Side Width | 40-80mm | 40-120mm | 50-150mm |
Packing Speed | Max 40 bags/min | Max 30 bags/min | Max 30 bags/min |
Power Supply | 220V/110V,3KW | 220V/110V,3.5KW | 220V/110V,4KW |
Air Consumption | 0.8Mpa 0.6m3/h | 0.8Mpa 0.6m3/h | 0.8Mpa 0.6m3/h |
Machine Weight | 450KGS | 550KGS | 650KGS |
The Optional Device On The VFFS Packing Machine
Application
VFFS Packing Machine For Different Kinds Of Product
Granule Packing Machine System
Granule Packing Machine System
Powder Packing Machine System
Liquid Packing Machine System
Application
VFFS packing machine,the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
VFFS packing machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.
Besides, by connecting with different weighing equipment, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc.
