The Technology Behind Doypack Machines: Small vs. Large Solutions Explained

As modern consumers, we often take for granted the innovative packaging that keeps our products fresh and appealing. Among the various solutions, Doypack packaging has emerged as a true game-changer, offering both convenience and aesthetic appeal across diverse industries. But what exactly goes into making these versatile pouches?

At TOP Y Machinery, we understand that efficient and high-quality packaging is critical for any business. Today, we're diving deep into the technology behind Doypack machines, exploring how these ingenious systems create stand-up pouches, whether for small-batch artisanal goods or high-volume industrial production.

Understanding the Evolution and Versatility of Doypack Machine Technology

The journey of the Doypack, or stand-up pouch, is a story of ingenuity that has reshaped how products are presented and consumed. Its rise in popularity is directly linked to the sophisticated technology of the machines that produce them. Understanding this evolution is key to appreciating their role in modern commerce. These machines are not just about creating bags; they are about delivering a comprehensive packaging solution that enhances brand value, ensures product safety, and meets consumer demands for convenience and sustainability. The versatility of this technology means it can be adapted for an incredible range of products, from powders and granules to liquids and solids, making it an indispensable asset in numerous industries.

What is a Doypack Machine and Why is it Essential?

At its core, a Doypack machine is a specialized piece of automated equipment designed to form, fill, and seal stand-up pouches, also known as Doypacks. Its essential nature stems from its ability to automate what would otherwise be a labor-intensive process, providing businesses with speed, consistency, and precision. In today's competitive market, efficiency and brand presentation are paramount. Doypack machines address both these needs, enabling companies to package their products in a format that is not only protective and functional but also highly marketable.

Doypack Machines: A Core Packaging Innovation

The Doypack was invented in 1963 by Louis Doyen, the president of a French company, Thimonnier. The name "Doypack" is a portmanteau of "Doyen" and "packaging." Initially, the technology was revolutionary for its ability to create a lightweight, flexible pouch that could stand upright on shelves, a feature that provided a significant marketing advantage over traditional flat packets and rigid containers. Doypack machines are the engines that bring this innovation to life. They handle a continuous roll of packaging film or pre-made pouches, shaping them, filling them with a precise amount of product, and then sealing them to ensure freshness and prevent contamination. Modern machines have evolved to incorporate advanced features like zipper insertion, spout application, and gas flushing, further solidifying their position as a cornerstone of the flexible packaging industry. This evolution reflects a broader trend towards packaging that is not only functional but also interactive and user-friendly.

Beyond Traditional: The Advantages of Doypack Packaging

The shift away from rigid packaging like jars, cans, and boxes towards flexible Doypack pouches is driven by a multitude of benefits for both brands and consumers.

Feature	Advantage
Shelf Presence	The ability to stand upright provides a better billboard effect on retail shelves, enhancing brand visibility compared to flat-lay bags.
Material Efficiency	Doypacks typically use significantly less material than rigid containers of the same volume, leading to lower production costs and reduced environmental impact.
Transportation & Storage	Being lightweight and compact, these pouches reduce transportation costs and require less storage space, both when empty and when filled.
Consumer Convenience	Features like resealable zippers, spouts for easy pouring, and ergonomic shapes make them exceptionally user-friendly. Their tear notches allow for easy opening without the need for scissors.
Customization	The large, printable surface area allows for high-impact, full-color graphics that attract consumer attention and convey brand messaging effectively.

These advantages make Doypack packaging a strategic choice for businesses looking to innovate, reduce costs, and appeal to the modern consumer's desire for convenience and sustainability.

A Wide Array of Applications for Doypack Machines

The adaptability of Doypack machine technology has led to its adoption across a vast spectrum of industries. The ability to handle different product types—be it solid, powder, granule, or liquid—makes it a versatile solution for countless applications. This wide-ranging usability is a testament to the sophisticated engineering behind the machines, which can be configured to meet the specific challenges of each product.

Here’s a breakdown of common applications:

• Food and Beverage: This is the largest sector utilizing Doypack machines. Products range from snacks (nuts, chips, pretzels), coffee, and tea to sauces, soups, and baby food. The excellent barrier properties of the pouch materials help in preserving freshness and extending shelf life.
• Pet Food: Dry kibble, wet food, and treats for pets are frequently packaged in stand-up pouches. The resealable zippers are particularly valued by consumers for maintaining product freshness after opening.
• Health and Beauty: Face masks, lotions, shampoos, and bath salts are often packaged in Doypacks. Spouted pouches are especially popular for liquid and gel-based products, offering controlled dispensing.
• Nutraceuticals: Protein powders, vitamins, and dietary supplements are commonly packaged in Doypacks. The format allows for secure sealing to protect sensitive ingredients from moisture and oxygen.

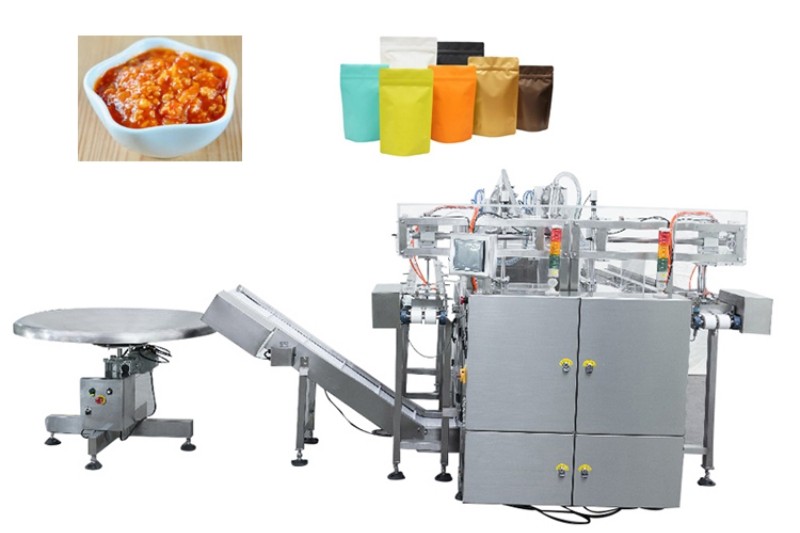

• Home and Garden: Products like detergents, cleaning pods, fertilizers, and seeds benefit from the durability and convenience of stand-up pouches.
• Cannabis Industry: With the legalization of cannabis in many regions, Doypacks have become a preferred choice for packaging flower, edibles, and other related products due to their child-resistant closure options and odor-sealing capabilities.

The ubiquitous nature of the Doypack demonstrates the technology's profound impact on the packaging world.

The Inner Workings: How Doypack Machines Transform Packaging

The process of converting a simple roll of film or a stack of pre-made bags into a perfectly filled and sealed stand-up pouch is a symphony of mechanical and electronic precision. Doypack machines, whether rotary or inline, follow a meticulously choreographed sequence of steps to ensure efficiency, accuracy, and consistency. Understanding this process reveals the sophisticated engineering that makes modern packaging possible. From the initial handling of the pouch to the final seal, each stage is critical for the integrity of the final product.

Decoding the Doypack Machine Process

A fully automatic Doypack machine executes a multi-station process that is both complex and rapid. Although designs can vary, especially between rotary and linear models, the fundamental workflow involves a series of sequential operations designed to prepare, fill, and secure the pouch.

Pouch Handling and Opening

The process begins at the first station, where the journey of an individual pouch starts.

1. Pouch Feeding and Gripping: In a premade pouch machine, a robotic arm with grippers picks a single pouch from a magazine or stack. The machine confirms that a pouch is properly grasped before moving to the next step. Some systems include a date-coding function at this stage, printing expiration dates or batch codes onto the pouch.
2. Pouch Opening: This is a crucial and often challenging step. The machine uses a combination of vacuum suction cups to pull the front and back faces of the pouch apart. Simultaneously, an opening jaw or air jet is used to inflate the pouch, ensuring it is fully open and ready to receive the product. Advanced machines have "no pouch, no fill" detection sensors; if a pouch fails to open correctly, the filling and sealing stations for that cycle are skipped to prevent product spillage and waste.

Precision Filling Mechanisms in Doypack Machines

Once the pouch is securely held open, it moves to the filling station. The type of filler used is determined by the product's characteristics (liquid, powder, solid, or granules).

• Auger Fillers: Ideal for powders like flour, spices, coffee grounds, and protein powder. A vertically rotating screw (auger) dispenses a precise volume of powder into the pouch. The number of rotations controls the amount of product dispensed.
• Volumetric Cup Fillers: Best suited for free-flowing granules of uniform size, such as rice, sugar, salt, and small snacks. The product fills a pre-sized cup, which then dumps its contents into the pouch.

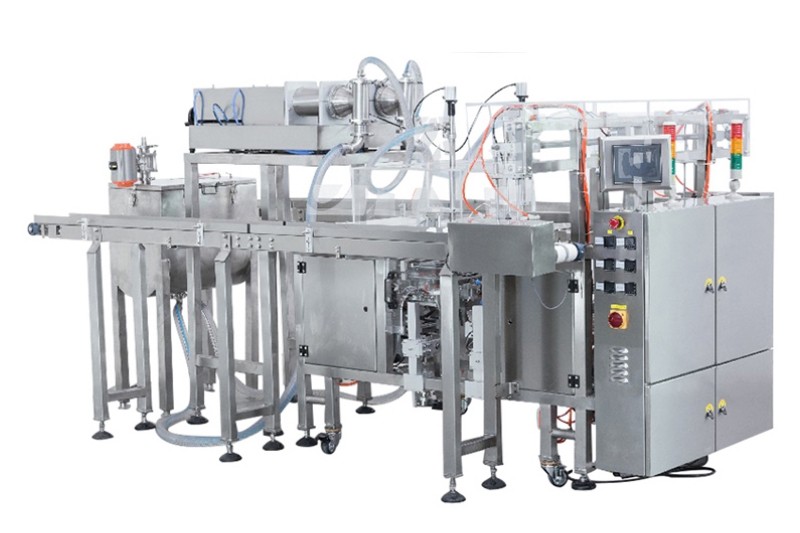

• Liquid and Piston Fillers: Designed for liquids, creams, and pastes like sauces, juices, lotions, and gels. A piston draws a set volume of product into a cylinder and then pushes it out into the pouch. For these applications, a specialized Liquid Doypack Filling Machine ensures an accurate fill without drips or mess.

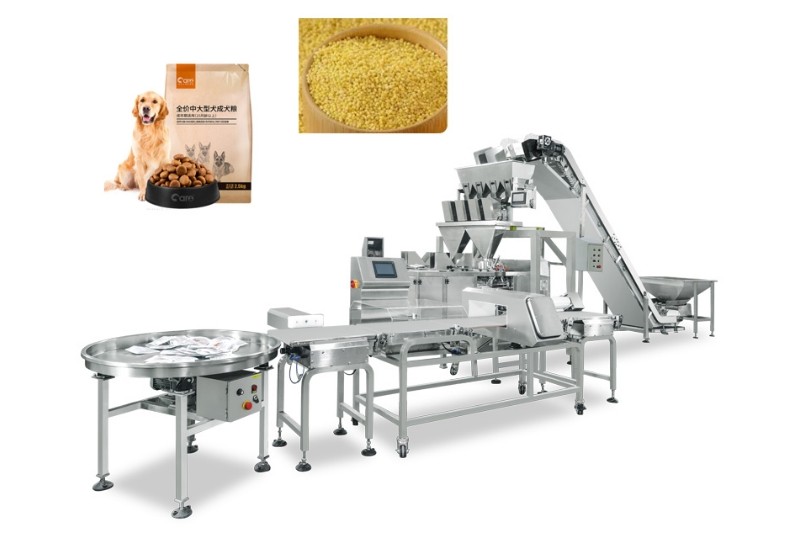

• Multi-Head Weighers: Used for solids and irregular-shaped items like chips, candy, nuts, and frozen foods. The product is distributed among multiple weigh buckets; a computer then calculates the combination of buckets that comes closest to the target weight and releases their contents into the pouch.

After filling, some machines incorporate a settling station that gently shakes the pouch to help the product settle at the bottom.

Ensuring Seal Integrity with Doypack Machine Technology

The final critical step is sealing. An uncompromised seal is vital for product safety, shelf life, and brand reputation.

1. Top Cleaning and Dusting: For dusty or powdery products, an air jet may blow away any product residue from the sealing area. This ensures a clean seal without particles being trapped, which could compromise its integrity.
2. Sealing: The machine uses a pair of heated seal bars that clamp down on the top edge of the pouch. The combination of heat, pressure, and time (dwell time) melts the inner sealant layers of the pouch film, fusing them together to create a strong, hermetic seal. Different film materials require different temperature and pressure settings.
3. Cooling and Discharging: Immediately following the heat seal, a pair of cooling bars may press against the area to quickly set the seal. This enhances the seal's strength and gives it a clean, finished appearance. The completed pouch is then released from the grippers and discharged onto a conveyor for secondary packaging.

Key Components Driving Doypack Machine Efficiency

The seamless operation of a Doypack machine is made possible by the integration of several high-tech components. These elements work in concert to deliver speed, accuracy, and reliability.

• PLC (Programmable Logic Controller): This is the brain of the machine. The PLC controls all the machine's functions, from motor speeds and valve timings to temperature settings and sensor inputs. It allows operators to set and save different recipes for various products and pouch sizes.
• HMI (Human-Machine Interface): This is typically a touchscreen display that provides a user-friendly interface for the operator to control the machine. From the HMI, operators can start and stop the machine, adjust parameters, monitor production statistics, and troubleshoot alarms.
• Sensors and Detectors: A network of sensors is used throughout the machine to ensure smooth operation. These can include proximity sensors to detect the presence of a pouch, photo-eye sensors for reading print marks, and load cells for weighing.
• Servo Motors: For high-precision movements, such as pouch indexing and filler control, servo motors are often used. They offer precise control over speed, position, and torque, which translates to faster and more accurate packaging.
• Pneumatic Systems: Air-powered cylinders and actuators are used for many functions, including gripping, opening, and sealing the pouches. Pneumatics provide reliable, cost-effective force for many mechanical movements.

The synergy between these components is what enables a Doypack machine to perform its complex task efficiently and reliably, cycle after cycle.

Small vs. Large Solutions: Tailoring a Doypack Machine to Your Needs

The world of Doypack machines is not one-size-fits-all. The right machine for a business depends entirely on its scale, product type, growth projections, and budget. From a compact, entry-level model for a burgeoning startup to a fully automated, high-speed line for a multinational corporation, the technology is remarkably scalable. This flexibility allows businesses to invest in a solution that meets their current demands while providing a pathway for future growth. Making the right choice between a small and large solution is a critical strategic decision.

Scalability in Doypack Machine Operations

The principle of scalability is central to modern manufacturing, and Doypack machine technology is a prime example. Businesses can start with a smaller, semi-automated machine and later upgrade or integrate it into a larger, fully automated system as production needs increase. This scalability ensures that the initial investment continues to provide value as the company grows.

Compact Doypack Machines for Emerging Businesses

For startups, small businesses, or companies launching a new product line, a large-scale industrial machine is often impractical and financially unfeasible. This is where compact Doypack machines shine.

Key Characteristics:

• Smaller Footprint: Designed to fit in limited production spaces, these machines are ideal for smaller facilities.
• Lower Speed: They typically operate at slower speeds, often in the range of 10-25 pouches per minute (PPM), which is sufficient for small-batch production.
• Cost-Effectiveness: The initial investment is significantly lower, making advanced packaging technology accessible to more businesses.
• Flexibility: Many compact models are designed for quick changeovers between different pouch sizes and product types, which is perfect for companies with a diverse product portfolio.

A Mini Doypack Machine is the quintessential solution for emerging businesses. It automates the core processes of filling and sealing, removing the bottleneck of manual labor and ensuring a professional, consistent product appearance. This allows a small brand to compete with larger players by presenting their product in high-quality, market-ready packaging. The ROI is quickly realized through reduced labor costs, increased production output, and enhanced brand perception.

High-Speed Doypack Machines for Industrial Production

For large-scale operations where volume and speed are paramount, high-speed, fully automated Doypack machines are the industry standard. These machines are engineered for continuous, 24/7 operation with minimal downtime.

Key Characteristics:

• High Throughput: These machines can achieve speeds from 60 PPM to over 200 PPM, depending on the number of lanes (e.g., duplex or triplex machines that handle multiple pouches at once).
• Full Automation: They are designed to be integrated into a complete packaging line, including conveyors, checkweighers, metal detectors, and case packers, requiring minimal operator intervention.
• Robust Construction: Built with heavy-duty materials like stainless steel, they are designed for durability and longevity in demanding industrial environments.
• Advanced Features: They often come standard with sophisticated technologies like servo drives for maximum precision, advanced PLC controls for complex recipe management, and inert gas flushing systems for extending shelf life.

These industrial-grade solutions are the workhorses of the food, pet food, and chemical industries, enabling massive production volumes that supply national and international markets. The investment is substantial, but for high-volume producers, the efficiency, reliability, and low per-unit packaging cost are indispensable.

Customization: Crafting the Perfect Doypack Filling and Sealing Machine with TOP Y Machinery

Beyond the distinction between small and large, perhaps the most significant aspect of modern Doypack machine technology is customization. A standard machine might not be suitable for a product with unique characteristics or a company with a specific production workflow. Working with an experienced Doypack Machine Manufacturer like TOP Y Machinery allows businesses to co-create a machine that is perfectly tailored to their needs.

Meeting Diverse Product Needs

Customization often starts with the product itself. A company packaging a chunky soup has very different needs from one packaging a fine powder or a corrosive liquid.

• For Liquids and Viscous Products: Customizations might include specialized nozzles that prevent dripping, anti-foaming filling technology, and sealing parameters designed for pouches that may have liquid in the seal area.
• For Powders: Options can include dust extraction hoods to maintain a clean working environment, auger fillers with specific screw designs for non-free-flowing powders, and vibration systems to settle the product in the pouch.
• For Solids and Granules: The machine can be integrated with highly accurate multi-head weighers and have custom-shaped funnels to guide irregularly shaped products like pretzels or jerky into the pouch without bridging.

Beyond the Standard: Specialized Doypack Machine Features

Customization extends to incorporating a wide array of value-added features that enhance the final package's functionality and consumer appeal.

Feature	Description	Application
Zipper Insertion	An integrated module automatically feeds, positions, and seals a resealable zipper track to the pouch film.	Snacks, coffee, pet food, protein powder
Spout & Cap Insertion	A system for inserting and sealing a corner or top spout, allowing for easy pouring of liquids and semi-liquids.	Juices, sauces, baby food, cleaning products
Gas Flushing (MAP)	This process displaces oxygen in the pouch with an inert gas (like nitrogen) before sealing, extending the product's shelf life.	Fresh foods, coffee, salty snacks
Hole Punching	Creates a hang hole (either round or Sombrero-style) so the pouch can be displayed on a peg in a retail environment.	Candy, small hardware, craft items
Child-Resistant Zippers	Specialized locking zippers that require a more complex two-step action to open, providing safety for certain products.	Pharmaceuticals, cannabis products, household chemicals

The Promise of a Customizable Doypack Packaging Machine

Investing in a custom Doypack machine is an investment in optimal performance. A tailored solution ensures that every component, from the filler to the sealer, is perfectly matched to the product and the packaging material. This results in higher efficiency, less product waste, lower downtime, and a superior final product. At TOP Y Machinery, we collaborate closely with our clients to understand their unique challenges and goals. This partnership approach ensures that the Doypack machine we build is not just a piece of equipment, but a strategic asset that drives productivity and growth.

Integrating Doypack Machine Solutions for Optimal Performance

Purchasing a Doypack machine is only the first step. To unlock its full potential, the machine must be effectively integrated into a broader production ecosystem. Optimal performance is achieved when the machine works in seamless harmony with upstream and downstream equipment. Furthermore, long-term success depends on selecting a machine that is not only powerful but also durable, reliable, and easy for your team to operate and maintain. These considerations are crucial for maximizing your return on investment and ensuring a smooth, efficient packaging operation for years to come.

Streamlining Production with Automated Doypack Machine Lines

A standalone Doypack machine can significantly boost efficiency, but integrating it into a fully automated line creates a powerhouse of productivity. Such a line minimizes manual handling, reduces the risk of errors, and creates a continuous, streamlined flow from raw product to case-packed goods.

A typical integrated line might look like this:

1. Infeed System: The product is automatically fed to the Doypack machine's filler. This could be a bucket elevator for solids, a screw conveyor for powders, or a pump and piping system for liquids.
2. Doypack Machine: The core of the operation, where the pouch is formed (if using a VFFS model), filled, and sealed.
3. Take-Away Conveyor: Discharges the filled pouches from the Doypack machine and transports them to the next station.
4. Checkweigher: Each pouch passes over an inline scale that verifies its weight. Underweight or overweight pouches are automatically rejected, ensuring compliance and preventing product giveaway.
5. Metal Detector/X-Ray System: A critical quality control step, this equipment scans each pouch for any potential metal or other foreign contaminants and rejects any suspect packages.
6. Case Packer: A robotic system that automatically arranges the pouches and packs them into cardboard boxes or cases.
7. Case Sealer & Palletizer: The final stage, where the filled cases are sealed and then stacked onto a pallet by a robot, ready for shipment.

Integrating these components requires careful planning and expertise. The communication between machines (the "handshake") must be perfect to avoid bottlenecks and ensure a consistent production pace. The result is a highly efficient, "lights-out" operation that can run with minimal human supervision, dramatically increasing throughput and reducing labor costs.

The Role of Durability and User-Friendliness in Doypack Machine Selection

While speed and features are exciting, the practicality of day-to-day operation is what truly defines a machine's value. Durability and user-friendliness are two of the most important, yet sometimes overlooked, factors in the selection process.

Durability and Construction:

• Materials: Look for machines constructed primarily from high-grade stainless steel (like SS304 or SS316 for food/pharma applications). This material is resistant to corrosion, easy to clean, and robust enough to withstand the rigors of a production environment.
• Component Quality: The reliability of a machine is the sum of its parts. High-quality pneumatic components (e.g., from brands like Festo or SMC), reliable electronics (e.g., Siemens, Allen-Bradley), and robust motors are indicators of a well-built machine designed for longevity.
• Ease of Maintenance: A well-designed machine provides easy access to key parts for cleaning, inspection, and routine maintenance. Designing for maintenance minimizes downtime and keeps the machine running at peak performance.

User-Friendliness and an Intuitive HMI:

• Simple Controls: The Human-Machine Interface (HMI) should be intuitive and easy to navigate. Operators should be able to quickly set up new jobs, adjust parameters, and troubleshoot issues without needing an engineering degree. Graphical displays, clear language (or multi-language support), and logical menu structures are key.
• Fast and Tool-less Changeovers: In a facility that handles multiple products or pouch sizes, the time it takes to switch from one job to another is critical. Machines that feature tool-less adjustments, quick-release parts, and recipe storage in the PLC can reduce changeover times from hours to minutes.
• Safety Features: User-friendliness also means safety. The machine must be equipped with comprehensive safety features, such as emergency stop buttons, safety interlocks on all doors and guards, and clear warning labels to protect operators from harm.

Selecting a machine that is both a workhorse and a pleasure to operate empowers your production team, reduces training time, minimizes errors, and ensures consistent, high-quality output.

The advancements in Doypack machine technology have undeniably transformed the packaging landscape, offering unparalleled efficiency, versatility, and product protection. From small-scale operations to large industrial setups, these machines provide tailored solutions to a wide range of packaging challenges. By understanding the core mechanics, the differences between small and large solutions, and the importance of customization and integration, businesses can make informed decisions that align with their operational needs and strategic goals.

At TOP Y Machinery, we are committed to empowering businesses with cutting-edge Doypack filling and sealing machines that perfectly align with their specific requirements. Our expertise in customization ensures that whether you need a compact solution like a Mini Doypack Machine or a high-performance automated line for liquids with a specialized Liquid Doypack Filling Machine, your equipment will propel your brand forward. As a dedicated Doypack Machine Manufacturer, we believe in building partnerships to create solutions that deliver lasting value.

If this exploration of Doypack technology has sparked ideas for your business, we encourage you to share this article with your colleagues and network. What packaging challenges are you facing? Let's start a conversation in the comments below
